Page 1
B OF
B OF
MODEL REF CUSTOMER
K55HXSPH-9906
5.604O±.015
5.125O±.015 B.C.
AUTOMATIC THERMAL
PROTECTOR
STANDARD
3097
#16 GRN/YEL GROUND LEAD
TO BE 12.000±.125 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
0
0
0
0
0
.
0
2
.
+
0
-
0
0
0
.
4
HP VOLTS AMPS HZ RPM
3/4
REV.
A
208-230
4.7
NAMEPLATE
60
(2).166 DIA. HOLES FOR
MOUNTING CAPACITOR
11.65 ±.062
5.56
TOP
1075 CCW LE REV.
ROTATIONCUSTOMER PN
5.000 ±.047
.125
4.500
±.030
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
DESCRIPTION / REMARKS
K55 HUB, S/A BRG, OPEN
OIL SLING TO BE PLACED IN
OPERATING POSITION AGAINST
FACE OF BRG HUB
(2).250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP ON BRN LEADS
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
LEADS TO BE PROTECTED WITH
4 HOLES GROMMETS BLK=24.000+2-0
WHT=24.000+2-0,BRN=24.000+2-0,
BRN/WHT STRIPE=24.000+2-0
NIDEC MOTOR CORPORATION 11-Sep-19
NIDEC MOTOR CORPORATION 11-Sep-19
THE RING DIAMETER VALUE WAS REMOVED
ISSUED BY :
ISSUED BY :
E. MARTINEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO 35283
D. TEJEDA
LEADS SKINNED
.750±.062
DIMENSIONS ARE FOR
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS.
(4)LEADS,#18.031 THICK INSUL.
(2)YELLOW & (2)ORANGE FOR
REVERSING ROTATION LEADS
TO BE PROTECTED WITH 3
HOLE GROMMET.
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG.& YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
REFERENCE ONLY
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
UNLESS TOLERANCE
IS SPECIFIED

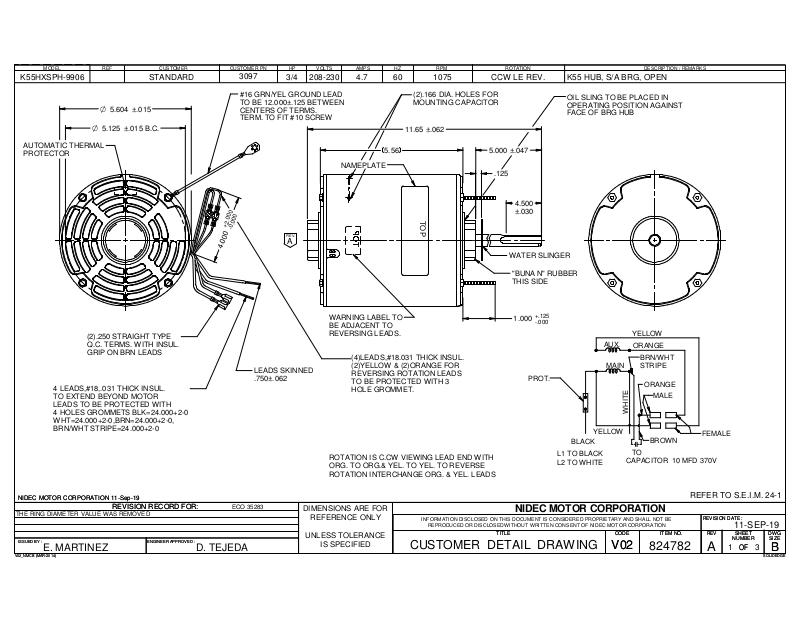

CUSTOMER DETAIL DRAWING
+.125
1.000
-.000
AUX.
MAIN
PROT.
YELLOW
BLACK
L1 TO BLACK
L2 TO WHITE
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
YELLOW
ORANGE
BRN/WHT
STRIPE
ORANGE
E
MALE
T
I
H
W
BROWN
TO
CAPACITOR 10 MFD 370V
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
824782
A
11-SEP-19
SHEET
SHEET
NUMBER
NUMBER
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
