Page 1
B OF
B OF
mm
VAR
001 S55VWRNY-8168
MODEL
CUSTOMER
STANDARD 8.0683083
A VOLTS
-- 1/7
--
HP
D
--
115
C SF
B
--
AMPS
2.6
HZ
60
RPM
3450
CONN VOLTS
--
PROT.CUSTOMER PN.
MANUAL
DESCRIPTION / REMARKS
--
.625SKINNED
3.625
6.750
7.500
5.812
MANUAL RESET
THERMAL PROTECTOR
2 CONDUCTOR SO #18 GAGE
RUBBER COVERED CORD TO
EXTEND BEYOND MOTOR
2
AS SHOWN
4
±
1
°
0
2
STRAIN RELIEF
WARNING LABEL
LEAD LOCATION
.445
1.593
1 COMB. Q.C & TERM. STUD.
+.0000
-.0005
.047
.5000
+.000
-.005
4
2
5.500
.344 DIA.
5.625
NAMEPLATE
u.062
A
.125
1.975
±.047
1 Q.C. TERMINAL
NIDEC MOTOR CORPORATION 24-Aug-15
NIDEC MOTOR CORPORATION 24-Aug-15
CREATED DRAWING
ISSUED BY :
ISSUED BY :
C. RODRIGUEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
JC 69961
T. JOHNSON
ROTACION: CCW DRIVE-END REV.
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°

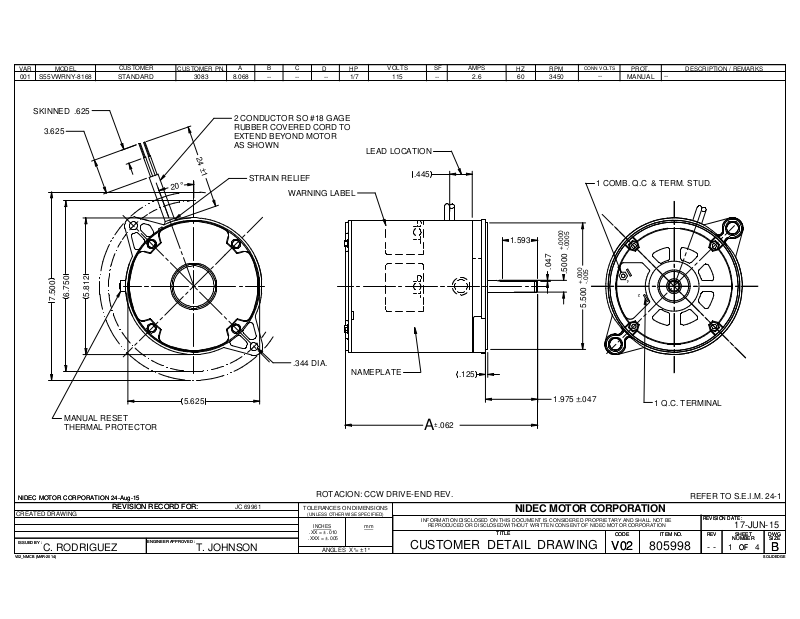

CUSTOMER DETAIL DRAWING
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
805998
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
- -
17-JUN-15
SHEET
SHEET
NUMBER
NUMBER
1 4
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
