US Motors 3076 Dimensional Sheet
B OF
B OF
mm
VAR
001 P55YYDJJ-1603
MODEL
CUSTOMER
WHOLESALE HAC 11.8123076
CAT. NO.
5.625
5.125
A
B
-------
8-32 THREAD
C SF
-------
-------
HP
D
3/4
VOLTS
208-230
u0.062
A
.563
1.35
AMPS
3.60 60
HZ
RPM
1140
3.000
CONN VOLTS
230
PROT.
AUTOMATIC
VERTICAL SHAFT DOWN, ROTATION IS CW LEAD END REV.
DESCRIPTION / REMARKS
(2) DRAIN HOLES
30°
GREEN GROUND LEAD #16,
0.31 THICK INSUL. TO
EXTEND BEYOND MOTOR
12.00u1.00 TO FIT #10 RING
3 LEADS, #14, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
RED=60.000+3.0/-1.0,
BLK=60.000+3.0/-1.0,
BLUE=60.000+3.0/-1.0, (3) .250 STRAIGHT
TYPE Q.C. TERMS.
WITH INSUL GRIP.
NAMEPLATE
.5000
.4995
WARNING
LABEL
2.500
.453
.469
2 FLAT 90° APART
90°
NIDEC MOTOR CORPORATION 18-Jan-16
NIDEC MOTOR CORPORATION 18-Jan-16
I CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
JC 70574
M. GUZMAN
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

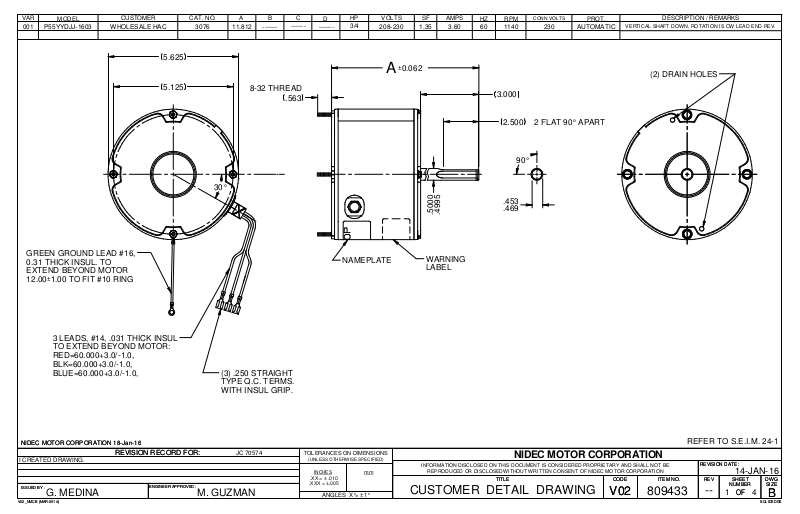

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
809433
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
14-JAN-16
SHEET
SHEET
NUMBER
NUMBER
1 4
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
