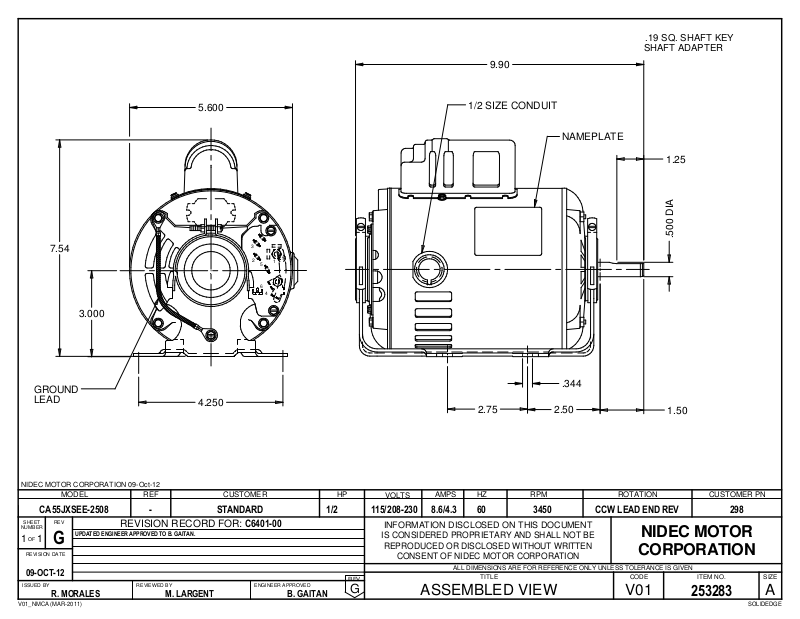

US Motors 298 Dimensional Sheet

9.90

.19 SQ. SHAFT KEY

SHAFT ADAPTER

7.54

GROUND
LEAD

3.000

5.600

4.250

1/2 SIZE CONDUIT

NAMEPLATE

1.25

.500 DIA

3

2

1

5

6

4

.344

2.75

2.50

1.50

NIDEC MOTOR CORPORATION 09-Oct-12

MODEL REF CUSTOMER HP

CA55JXSEE-2508 -

SHEET

NUMBER

1 1

REV

OF

G

REVISION DATE

UPDATED ENGINEER APPROVED TO B. GAITAN.

REVISION RECORD FOR:

09-OCT-12

ISSUED BY

REVIEWED BY ENGINEER APPROVED

R. MORALES

STANDARD

C6401-00

M. LARGENT B. GAITAN

1/2

REV.

G

VOLTS

115/208-230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

AMPS

8.6/4.3

HZ RPM ROTATION CUSTOMER PN

60

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

3450

ASSEMBLED VIEW

CCW LEAD END REV 298

NIDEC MOTOR

CORPORATION

V01

253283

A

SOLIDEDGEV01_NMCA (MAR-2011)
