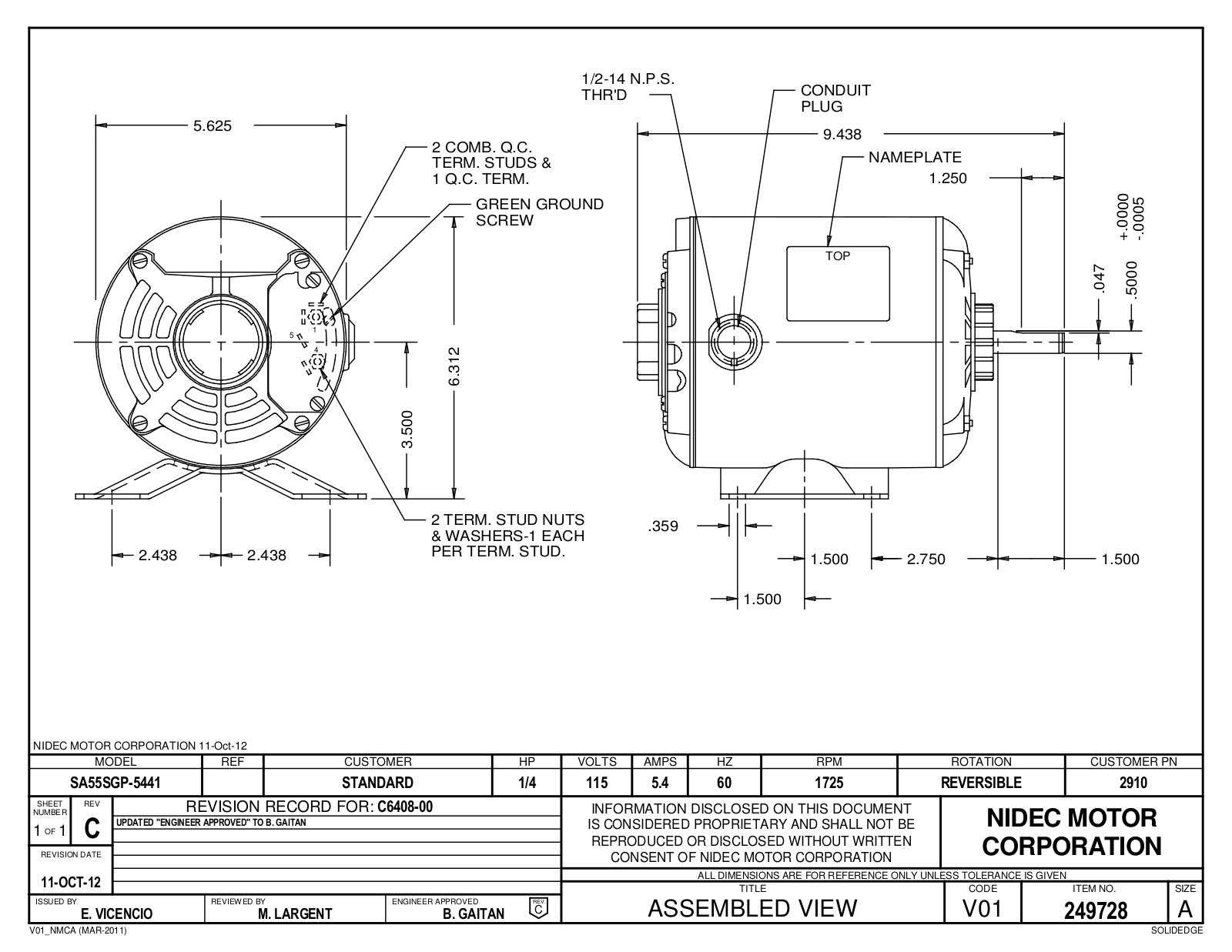

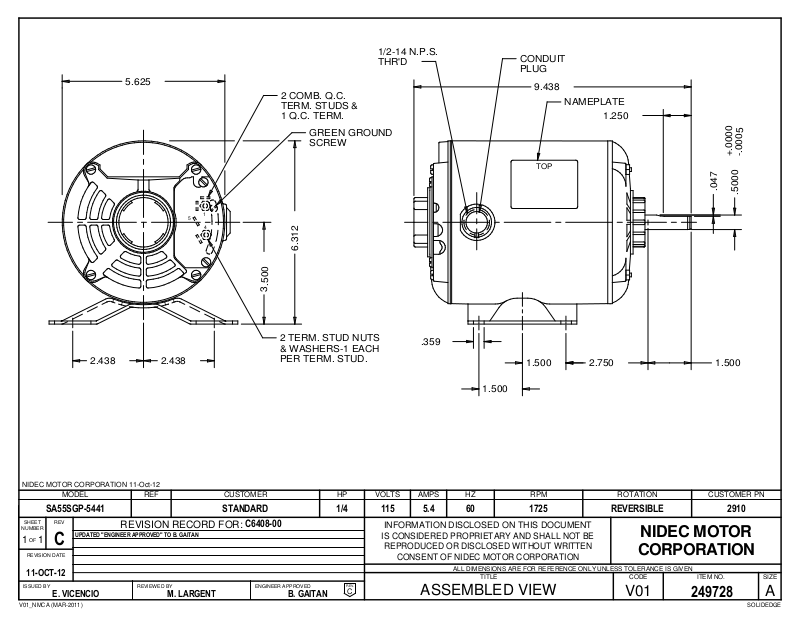

US Motors 2910 Dimensional Sheet
5.625
1/2-14 N.P.S.
THR'D
CONDUIT
PLUG
9.438
2 COMB. Q.C.
TERM. STUDS &
1 Q.C. TERM.
GREEN GROUND
SCREW
1
5
4
0
0
5
.
3
2
1
3
.
6
TOP
NAMEPLATE
1.250
0
5
0
0
0
0
0
0
.
.
-
+
0
7
0
4
0
0
.
5
.
2.438 2.438
NIDEC MOTOR CORPORATION 11-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
SA55SGP-5441
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
UPDATED "ENGINEER APPROVED" TO B. GAITAN
REVISION RECORD FOR:
11-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
E. VICENCIO M. LARGENT B. GAITAN
2 TERM. STUD NUTS
& WASHERS-1 EACH
PER TERM. STUD.
.359
1.500
2.750
1.500
1.500
STANDARD 1/4 115 5.4 60 1725 REVERSIBLE 2910
C6408-00
REV.
C
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
NIDEC MOTOR
CORPORATION
V01
249728
A
SOLIDEDGEV01_NMCA (MAR-2011)
