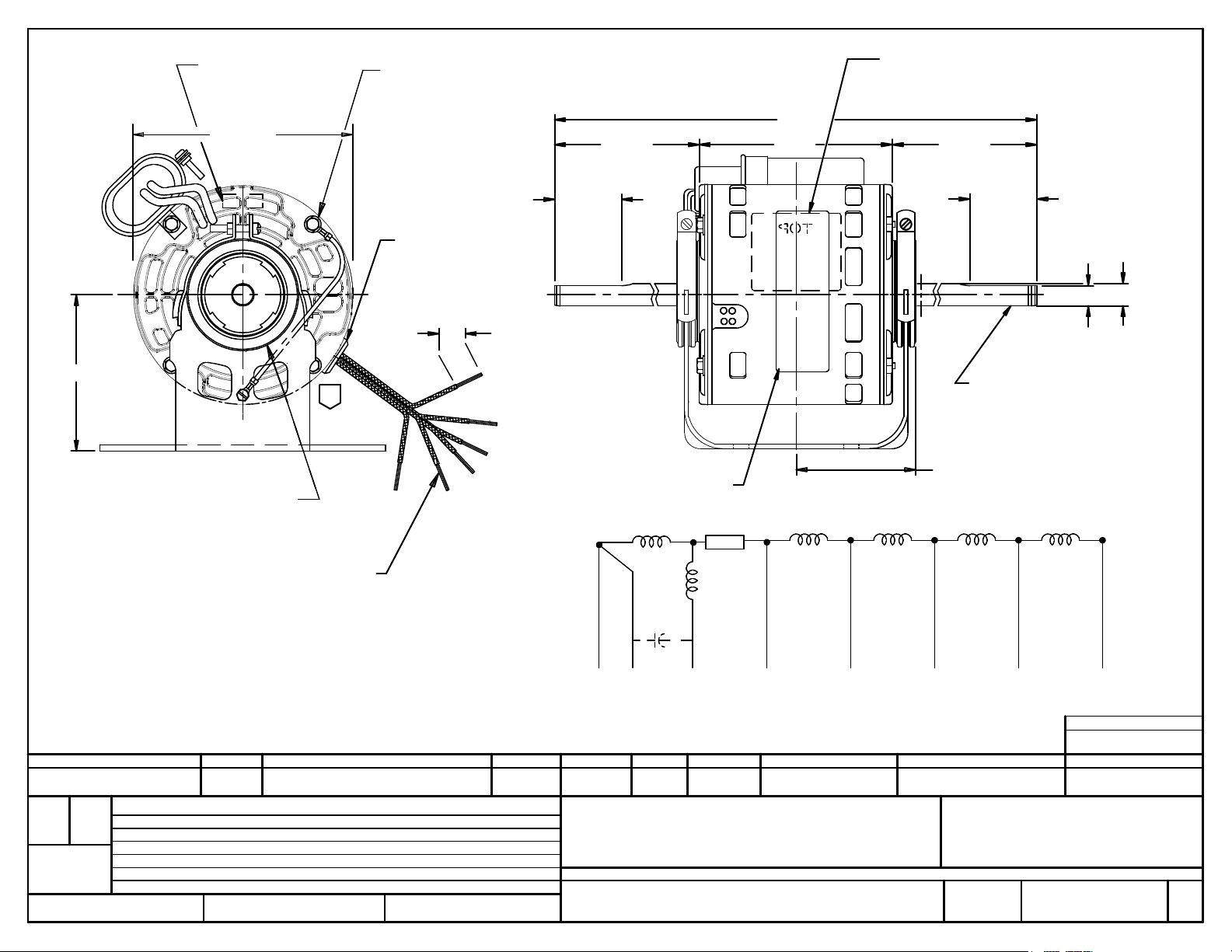

AUTOMATIC
THERMAL
PROTECTOR
4.906
#16, GRN/YEL GRD LEAD TO BE
10.000±.250 BETWEEN CENTERS
OF TERMS., TERM. TO FIT #10
SCREW.
WARNING LABEL
OPPOSITE SIDE
24.312
4.312 10.00010.000
3.500
SPLIT IN
MTG RING
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHITE =54.000+3-0, BLACK =54.000+3-0
YELLOW =54.000+3-0, BLUE =54.000+3-0
ORANGE =54.000+3-0, RED =54.000+3-0
REV.
F
GROMMET
8.000
.750 SKINNED
NAMEPLATE
M1
PROT.
AUX
M2
8.000
TYP.
+.015
-.000
.047
TOP
TYP.
IDENT GROOVE
THIS END
+.0000
-.0005
.5000
1.502
M3
M4
M5
NIDEC MOTOR CORPORATION 14-Nov-17
MODEL REF
K48HXWGM-0192
SHEET
NUMBER
1 1
REV
OF
F
REVISION DATE
CHANGE DRAWING TO SHOW THAT THE GROUND WIRE IS ROUTED FROM INSIDE THE BASE
A32829
REVISION RECORD FOR:
15-NOV-17
ISSUED BY
REVIEWED BY ENGINEER APPROVED
J. ALVARADO
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
NIDEC MOTOR CANADA CORPORATION
ECO: E29762
R. CRUZ
H. O. NAVARRO
WHT
COM
BROWN
CAP
AUX
BROWN
BLK
M1
YEL
M2
BLU
M3
M4
1/10 115 2.5 60 1050/5 SPD CW LEAD END
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

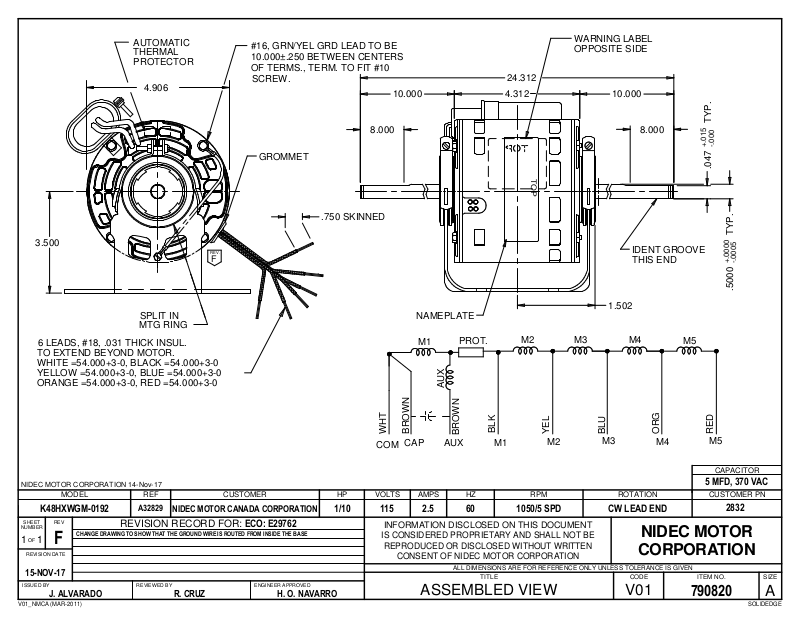

ASSEMBLED VIEW
NIDEC MOTOR
CORPORATION
V01
ORG
RED
M5
CAPACITOR
5 MFD, 370 VAC
CUSTOMER PN
2832
790820
A
SOLIDEDGEV01_NMCA (MAR-2011)
