AUTOMATIC THERMAL
PROTECTOR
.19 SQ. SHAFT KEY
TAPED TO MOTOR
6.50 11.81
NAMEPLATE
8.49
CONNECTIONS
L - LOW SPEED
C - COMMON
H - HIGH SPD
5 - BLACK, 2 - RED
NIDEC MOTOR CORPORATION 03-Oct-17
REV.
G
1.88
1.750
TOP
CAUTION
3.50
.625 DIA
2.753.004.88
1/2 SIZE CONDUIT
MODEL REF
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
C63CXSSH-4583 STANDARD 1.0 / 1/3 115 12.4/6.1 60 1725/1140 CCW LEAD END REV 2574
SHEET
NUMBER
OF
1 1
REVISION DATE
03-OCT-17
ISSUED BY
REV
CHANGED VIEW GROUND LEAD TO BEHIND BASE LE.
G
C. LUGO
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
F. FLORES J.I. SALAZAR
ECO E29748
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

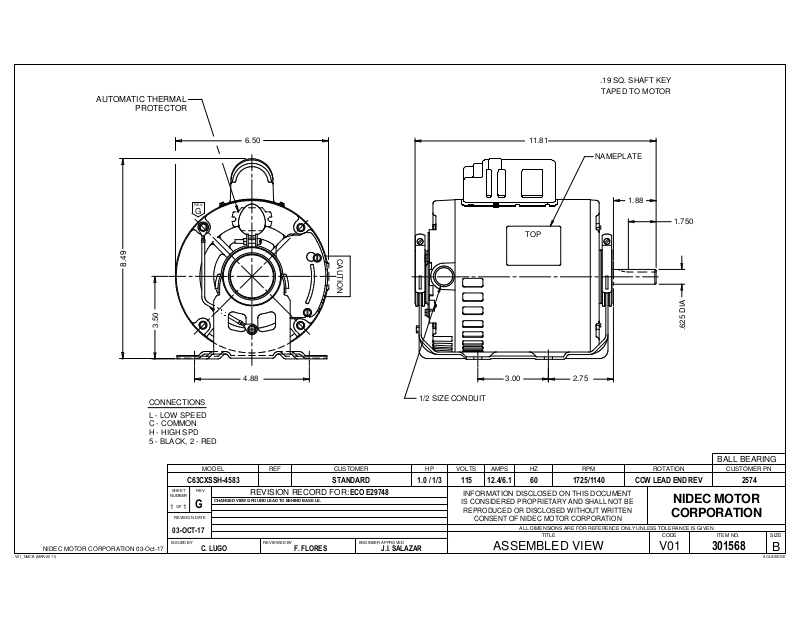

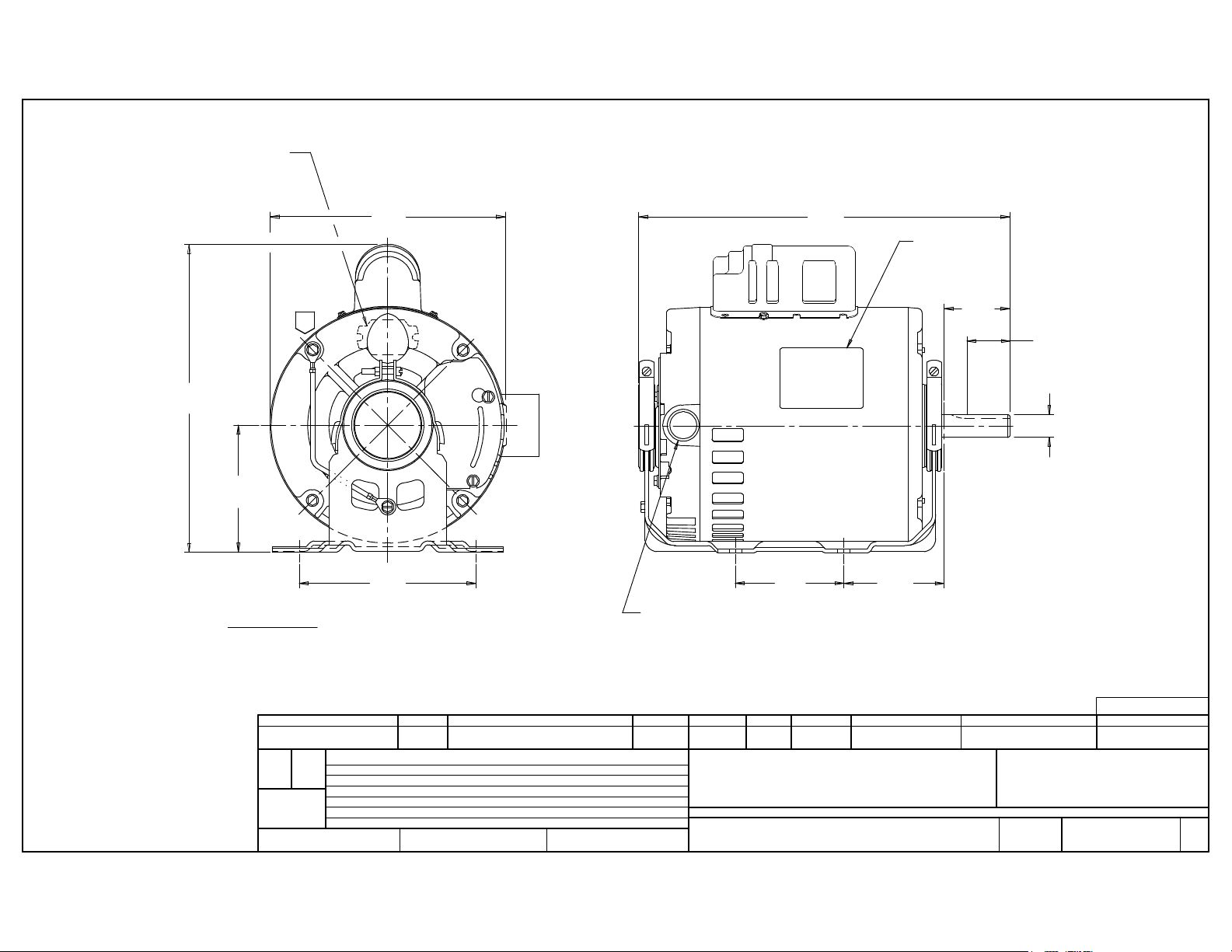

ASSEMBLED VIEW
NIDEC MOTOR
CORPORATION
V01
BALL BEARING
CUSTOMER PN
301568
B
SOLIDEDGEV01_NMCB (MAR-2011)
