MODEL
K55ZZTFJ-8673
REF
A12021
(1) TERMS .250 STR. TYPE Q.C.
TERMS WITH INSUL. GRIP ON
BLACK LEAD
STANDARD
HP ROTATION
5 LEADS, #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
PUR=16.000+1-0, YEL=16.000+1-0,
BLU=16.000+1-0, BLK=16.000+1-0,
RED=16.000+1-0
#16 GRN/YEL GROUND LEAD
TO BE 12.000u.250 BETWEEN
CENTERS OF TERMS TO FIT
#10 SCREW
AUTOMATIC
THERMAL
PROTECTOR
1
VOLTS
460 3.3 60
AMPS
HZ
RPM
1100/3 SPD
C.CW LEAD END REV
CAT. NO
2553
DESCRIPTION / REMARKSCUSTOMER
10.312
6.812
NAMEPLATE
3.500 ±.047
5.625
5.125 DIA. B.C.
.
S
K
(3) .250 STRAIGHT
TYPE Q.C. TERMS.
(3) LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
WHT=16.000u1.000,
BRN=16.000u1.000
BRN/WHT=16.000u1.000
NIDEC MOTOR CORPORATION 04-Oct-18
NIDEC MOTOR CORPORATION 04-Oct-18
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
7
5
0
I
N
N
E
D
(4) LEADS #18, .031 THICK INSUL
FOR REVERSING ROTATION TO
EXTEND:
(2) YELLOW=4.0u1.0, (2) ORANGE=4.0u1.0
ECO: E32195
ENGINEER APPROVED :
ENGINEER APPROVED :
P. RODRIGUEZ
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
3.000
.5000
.4997
.453
.438
90
TYP.
.453
°
.438
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG HUB
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
1/2 M1
1/2 M1
YEL
ORG
AUX
BRN/WHT
WHITE
CAP.
25 MDF
370V
BRN
ORG
YEL
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

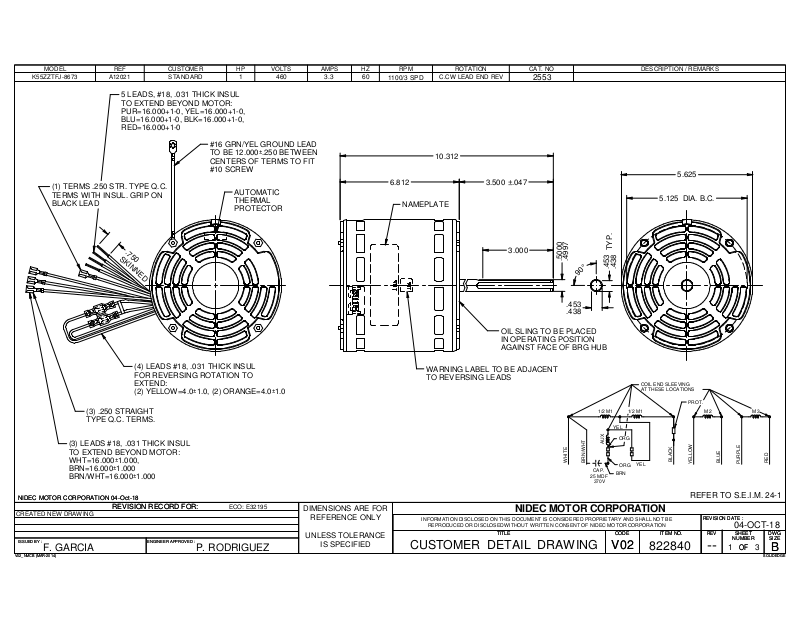

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
COIL END SLEEVING
AT THESE LOCATIONS
BLACK
822840
PROT.
M2
BLUE
YELLOW
M3
RED
PURPLE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
04-OCT-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
