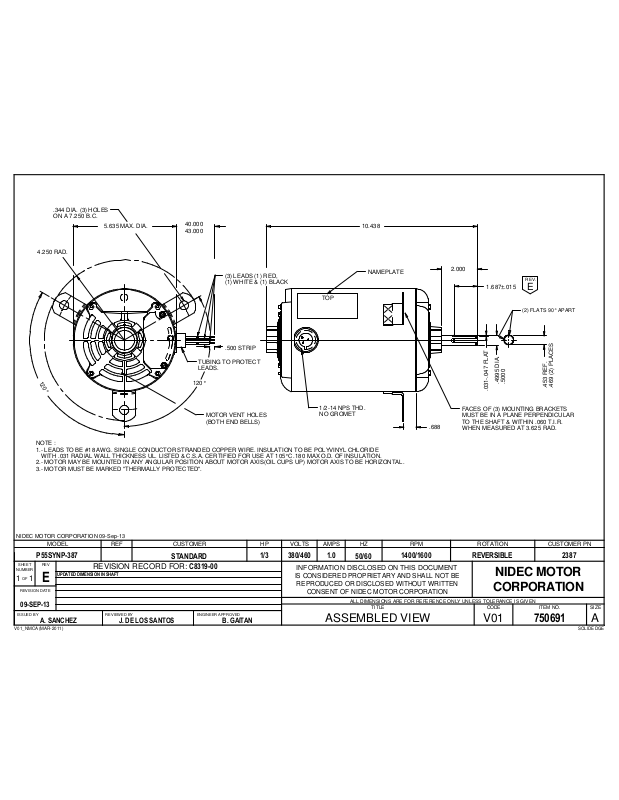

US Motors 2387 Dimensional Sheet
.344 DIA. (3) HOLES
ON A 7.250 B.C.
4.250 R
A
D
.
1
2
0
°
5.635 MAX. DIA.
40.000
43.000
(3) LEADS (1) RED,
(1) WHITE & (1) BLACK
.500 STRIP
TUBING TO PROTECT
LEADS.
120°
TOP
10.438
NAMEPLATE
2.000
1.687±.015
.4995 DIA.
.5000
.031-.047 FLAT
REV.
E
(2) FLATS 90° APART
.453 REF.
.469 (2) PLACES
1/2-14 NPS THD.
MOTOR VENT HOLES
(BOTH END BELLS)
NOTE :
1.- LEADS TO BE #18 AWG. SINGLE CONDUCTOR STRANDED COPPER WIRE. INSULATION TO BE POLYVINYL CHLORIDE
WITH .031 RADIAL WALL THICKNESS UL. LISTED & C.S.A. CERTIFIED FOR USE AT 105°C .180 MAX O.D. OF INSULATION.
2.- MOTOR MAY BE MOUNTED IN ANY ANGULAR POSITION ABOUT MOTOR AXIS(OIL CUPS UP) MOTOR AXIS TO BE HORIZONTAL.
3.- MOTOR MUST BE MARKED "THERMALLY PROTECTED".
NIDEC MOTOR CORPORATION 09-Sep-13
NUMBER
1 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
P55SYNP-387
SHEET
OF
REVISION DATE
REV
UPDATED DIMENSION IN SHAFT
E
STANDARD
REVISION RECORD FOR:
C8319-00
1/3 380/460 1.0
09-SEP-13
ISSUED BY
A. SANCHEZ
REVIEWED BY ENGINEER APPROVED
J. DE LOS SANTOS B. GAITAN
NO GROMET
50/60
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
ASSEMBLED VIEW
FACES OF (3) MOUNTING BRACKETS
MUST BE IN A PLANE PERPENDICULAR
.688
1400/1600
TO THE SHAFT & WITHIN .060 T.I.R.
WHEN MEASURED AT 3.625 RAD.
REVERSIBLE 2387
NIDEC MOTOR
CORPORATION
TITLE CODE SIZEITEM NO.
V01
750691
A
SOLIDEDGEV01_NMCA (MAR-2011)
