Page 1
B OF
B OF
mm
VAR
001 SD55VWSBB-4526
8.000
MODEL
7.250
6.688
CUSTOMER
WHOLESALE - HAC 9.0702302
2 LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
+2
BLACK=20.0
WHITE=20.0
;
-0
+2
-0
C
B
A
7.090 1/4
-------
D
-------
HP
VOLTS
115
TWO 10-32 SCREW S
1.0
SF
AMPS
3.7
HZ
60
RPM
3450
CONN VOLTS
--
PROT.CAT. NO.
MANUAL
DESCRIPTION / REMARKS
--
FACE TO BE SQUARE WITH RESPECT
TO SHAFT WITHIN .008 T.I.R.
MAX. ECCENTRICITY OF RABBET FIT
WITH RESPECT TO SHAFT TO BE .008 T.I.R.
2 COMB. Q.C. & TERM. STUD
+.0000
-.0005
1.593
.438-.453
.500
+.000
-.005
4
1
6.375
INSULATING
BUSHING
MANUAL THERMAL
PROTECTOR
NIDEC MOTOR CORPORATION 07-Apr-15
NIDEC MOTOR CORPORATION 07-Apr-15
CREATED DRAWING
ISSUED BY :
ISSUED BY :
N. MARTINEZ
5.625
.344 DIA.
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
JC 69695
T. JOHNSON
NAMEPLATE
.625 SKINNED
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
.125
B
1.970
A
ROTATION: CCW LE REV
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

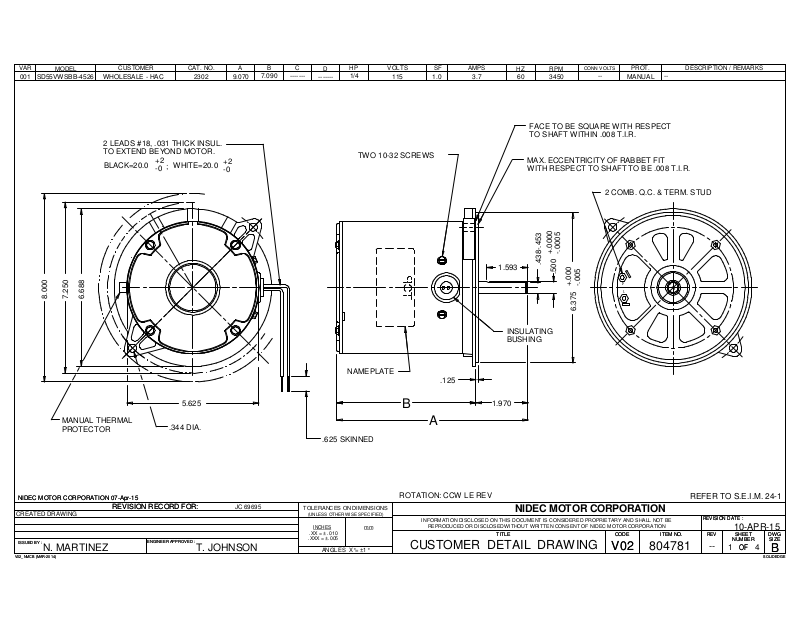

CUSTOMER DETAIL DRAWING
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
804781
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
10-APR-15
SHEET
SHEET
NUMBER
NUMBER
1 4
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR- 2014)
SOLIDEDGEV02_NMCB (MAR- 2014)
