Page 1
TOX BUTTON PROTRUSION (LEAD END)
D
TYP 4 PLACES
AUTOMATIC
THERMAL
PROTECTOR
8-32 SCREW AND NUT
2 PLACES (180° APART)
4.820 DIA. REF.
(122.43)
.585±.025 TYP.
(14.86 ±.64)
6.857 (174.17) REF.
4.107±.062
(104 . 3 2 ±1.57)
TOP
NAMEPLATE
2.750
(69.85)
2.500
(63.5)
DIA.
+.0000
-.0003
.5000
(12.7+0/-.0076)
TOTALLY ENCLOSED
REF. DWG. NO
SHEET
REV
NUMBER
OF
1 1
REVISION
01-DEC-17
ISSUED BY
V01_A_NIDEC
ADDED WA RNING LABEL.
D
DATE
J. SONG
4-SHIFT NO
5,594
O
142,09 B.C.
4.312 ±.015
109.52 ±.38 DIA. B.C.
4 LEADS *18, 2/64 THICK INSUL
(2) YELLOW & (2)ORANGE FOR
REVERSING ROTATION
3 LEADS *18,4/64 THICK INSUL
BLK=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
WHT=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
BRN=42.0+3-0(1066.8+76.2-0) WITH 0.25(6.35) STR QC
TERM
NOTE: ENCLOSURE CONTAINS FOUR 8-32 NUTS
WITH ATTACHED STAR-TYPE LOCK WASHERS.
CUSTOMER
PAINT
STANDARD
+2
12/1/2017
MODEL REF.
K48HXTML-4007
+50.80
-.00
0
4
101.60
REVISION RECORD FOR:
REVIEW ED BY ENGINEER APPROVE D
R. LI
ECO E30156
D. ZHONG
8-32 THREAD
TOP
SLINGER WASHER
DRAIN HOLES
WARNING LABEL
REV.
PROT.
L1 TO BLK
L2 TO WHT
BLACK
ROTATION IS C.CW VIEWING LEAD END WITH ORG. TO ORG. & YEL. TO
YEL. TO REVERSE ROTATION INTE RCHANGE: ORG
(THIS END)
AUX.
MAIN
WIHITE
YELLOW
CAPACITOR 7.5 MFD 370-VAC
DIMENSIONS ARE IN INCHES (MM)
HP. VOLTS AMPS HZ. R.P.M. ROTATION
1/4
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT
BE REPRODUCED OR DISCLOSED WITHOUT WRITTEN CONSENT OF EMERSON ELECTRIC COMPANY.
1.7 60
ALL DIMENSIONS ARE FOR RE FERENCE ONLY UNLESS TOLERA NCE IS GIVEN.
TITLE CODE SIZEITEM NO.

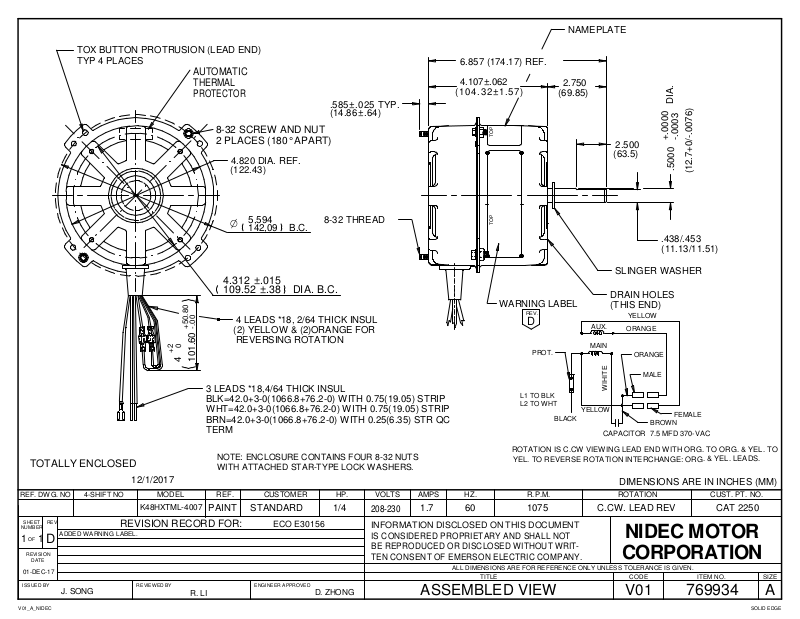

ASSEMBLED VIEW
1075
C.CW. LEAD REV
NIDEC MOTOR
CORPORATION
V01
YELLOW
ORANGE
ORANGE
MALE
.438/.453
(11.13/11.51)
FEMALE
BROWN
769934
. & YEL. LEADS.
CUST. PT. NO.
CAT 2250
A
SOLID EDGE
