TOX BUTTON PROTRUSION (LEAD END)
TYP 4 PLACES
AUTOMATIC
THERMAL
PROTECTOR
8-32 SCREW AND NUT
2 PLACES (180° APART)
4.820 DIA. REF.
(122.43)
5.594
142.09 B.C.
.585±.025 TYP.
(14.86±.64)
REV.
C
8-32 THREAD
6.857 (174.17) REF.
4.107±.062
(1 04.32 ±1.57)
TOP
NAMEPLATE
2.750
(69.85)
2.500
(63.5)
DIA.
+.0000
-.0003
.5000
(12.7+0/-.0076)
.438/.453
(11.13/11.51)
TOTALLY ENCLOSED
2017/4/12
REF. DWG. NO
SHEET
REV
NUMBER
OF
1 1
REVISION
02-MAR-17
ISSUED BY
V01_A_NIDEC
ADD SCREWS AND NUTS
C
DATE
J. LI
4-SHIFT NO
4.312 ±.015
109.52 ±.38 DIA. B.C.
+50.80
-.00
0
+2
4
101.60
4 LEADS *18, 2/64 THICK INSUL
(2) YELLOW & (2)ORANGE FOR
REVERSING ROTATION
3 LEADS *18,4/64 THICK INSUL
BLK=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
WHT=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
BRN=42.0+3-0(1066.8+76.2-0) WITH 0.25(6.35) STR QC
TERM
NOTE: ENCLOSURE CONTAINS FOUR 8-32 NUTS
WITH ATTACHED STAR-TYPE LOCK WASHERS.
MODEL REF.
K48HXTMK-4006
PAINT
CUSTOMER
STANDARD
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
R.LI
ECO
28143
SLINGER WASHER
DRAIN HOLES
(THIS END)
YELLOW
PROT.
L1 TO BLK
L2 TO WHT
BLACK
ROTATION IS C.CW VIE
YEL. TO REVER
MAIN
YELLOW
SE ROTATION INTERCHANGE: ORG. & YEL. LE
AUX.
ORANGE
ORANGE
MALE
WIHITE
FEMALE
BROWN
CAPACITOR 5.0 MFD 370-VAC
WING LEAD END WITH ORG. TO ORG. & YEL. T
DIMENSIONS ARE IN INCHES (MM)
HP. VOLTS AMPS HZ. R.P.M. ROTATION CUST. PT. NO.
1/5
D.ZHONG
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT
BE REPRODUCED OR DISCLOSED WITHOUT WRITTEN CONSENT OF EMERSON ELECTRIC COMPANY.
1.6 60
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN.
TITLE CODE SIZEITEM NO.

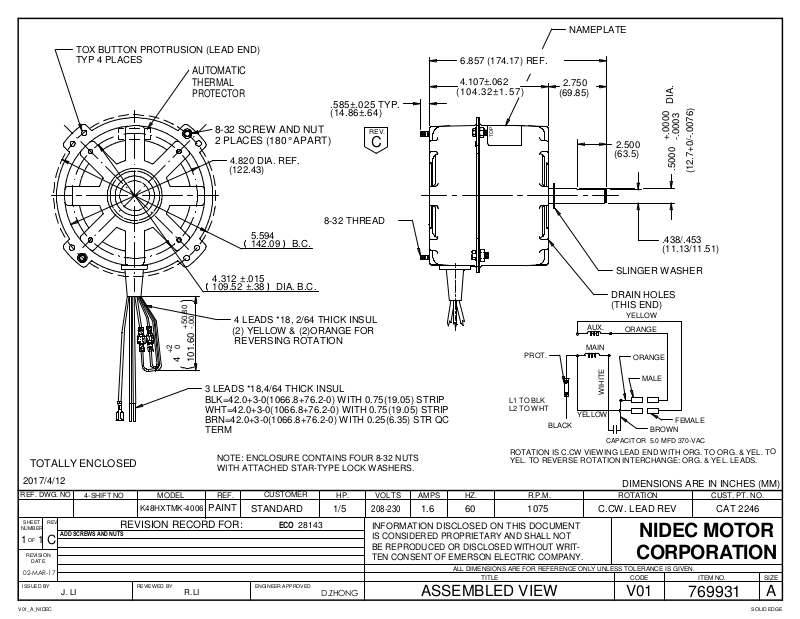

ASSEMBLED VIEW
1075
C.CW. LEAD REV
NIDEC MOTOR
CORPORATION
V01
CAT 2246
769931
O
ADS.
