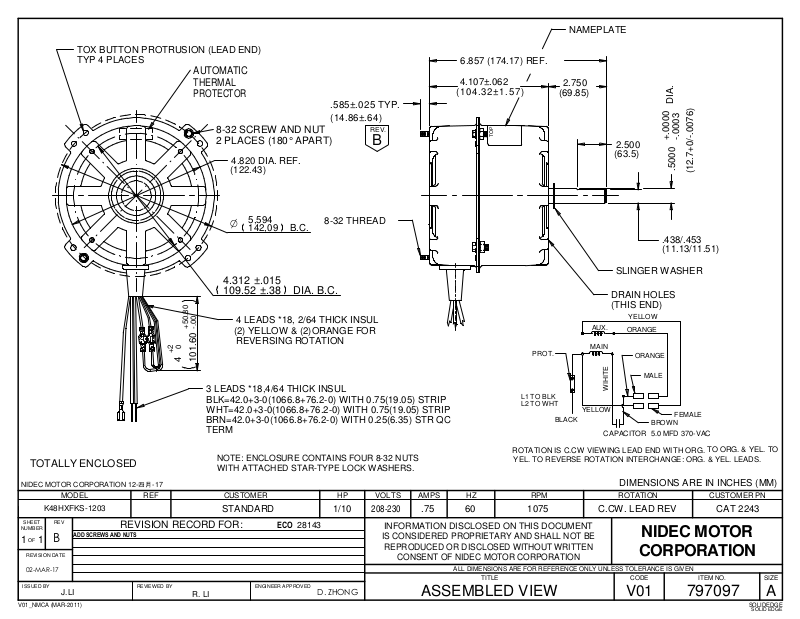

TOX BUTTON PROTRUSION (LEAD END)
TYP 4 PLACES
AUTOMATIC
THERMAL
PROTECTOR
8-32 SCREW AND NUT
2 PLACES (180° APART)
4.820 DIA. REF.
(122.43)
.585±.025 TYP.
(14.86±.64)
REV.
B
6.857 (174.17) REF.
4.107±.062
(1 04.32 ±1.57)
TOP
NAMEPLATE
2.750
(69.85)
2.500
(63.5)
DIA.
+.0000
-.0003
.5000
(12.7+0/-.0076)
TOTALLY ENCLOSED
NIDEC MOTOR CORPORATION 12四-
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K48HXFKS-1203
SHEET
NUMBER
1 1
ISSUED BY
REV
OF
B
REVISION DATE
02-MAR-17
ADD SCREWS AND NUTS
J.LI
5,594
O
142,09 B.C.
4.312 ±.015
109.52 ±.38 DIA. B.C.
+50.80
-.00
0
+2
4
101.60
-
月
17
4 LEADS *18, 2/64 THICK INSUL
(2) YELLOW & (2)ORANGE FOR
REVERSING ROTATION
3 LEADS *18,4/64 THICK INSUL
BLK=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
WHT=42.0+3-0(1066.8+76.2-0) WITH 0.75(19.05) STRIP
BRN=42.0+3-0(1066.8+76.2-0) WITH 0.25(6.35) STR QC
TERM
NOTE: ENCLOSURE CONTAINS FOUR 8-32 NUTS
WITH ATTACHED STAR-TYPE LOCK WASHERS.
STANDARD
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
R. LI
ECO
28143
D. ZHONG
8-32 THREAD
1/10
208-230
PROT.
L1 TO BLK
L2 TO WHT
TATION IS C.CW VIEWING LEAD END WITH ORG.
RO
YEL. TO REVERSE ROTATION IN
.75 60
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
1075
YELLOW
BLACK
ASSEMBLED VIEW
.438/.453
(11.13/11.51)
SLINGER WASHER
DRAIN HOLES
(THIS END)
YELLOW
AUX.
MAIN
ORANGE
ORANGE
MALE
WIHITE
FEMALE
BROWN
CAPACITOR 5.0 MFD 370-VAC
TO ORG. & YEL. TO
TERCHANGE: ORG. & YEL. LEADS.
DIMENSIONS ARE IN INCHES (MM)
C.CW. LEAD REV
NIDEC MOTOR
CORPORATION
V01
797097
CAT 2243
SOLIDEDGEV01_NMCA (MAR-2011)
SOLID EDGE
