Page 1
GREEN GROUND LEAD TO
BE 6 INCHES LONG.
TERM TO FIT #10 SCREW.
AUTOMATIC THERMAL
PROTECTOR
CONDUIT
PLUG
8.375
WARNING LABEL
NAMEPLATE
13.80
5.000
.125 MIN
0
3
6
.
5
GROUND STRIP
OPPOSITE END
SPLIT IN
MTG.RING
7 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHT=6.000±1.0, BLK=6.000±1.0,
PUR=6.000±1.0, ORG=6.000±1.0,
BLU=6.000±1.0, RED=6.000±1.0,
YEL=6.000±1.0
LEADS TO BE DISCONNECTED AND
BUNDLED UNDER TERMINAL COVER IN
INTERNAL CONDUIT BOX FOR SHIPMENT.
GREEN
GROUND
SCREW
0
5
2
.
2
1/2-14 N.P.S.
ROTATION IS C.CW. VIEWING LEAD END.
CONNECTED AS SHOWN. TO REVERSE ROTATION
INTERCHANGE YELLOW AND ORANGE LEADS.
DRAIN HOLE
BOTH ENDS
230 VOLTS
WHITE L1
PURPLE
RED INSUL.
YELLOW
BLUE
BLACK
ORANGE
L2
CAP
TOP
TOP
.156 ±.062
460 VOLTS
WHITE L1
PURPLE INSUL.
RED
YELLOW INSUL.
BLUE
BLACK L2
ORANGE
CAP
4.408
BUNA "N" RUBBER
THIS SIDE
WATER
SLINGER
SPRING WASHER
(THIS END)
1st 1/2 M1
.
L
D
E
E
Y
R
AUX.
3
5
4
.
.
G
R
O
CAP.
8
3
4
.
9
0
9
0
4
5
.
.
PROT.
2nd 1/2 M1
T
K
H
L
W
B
.
R
U
P
E
U
L
B
0
0
NIDEC MOTOR CORPORATION 15-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSYD-7993
SHEET
NUMBER
1 1
REV
OF
E
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
15-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES
STANDARD
C6404-00
M. LARGENT B. GAITAN
3/4
REV.
E
208-230/460
4.8-4.6/2.3
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60 1075
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

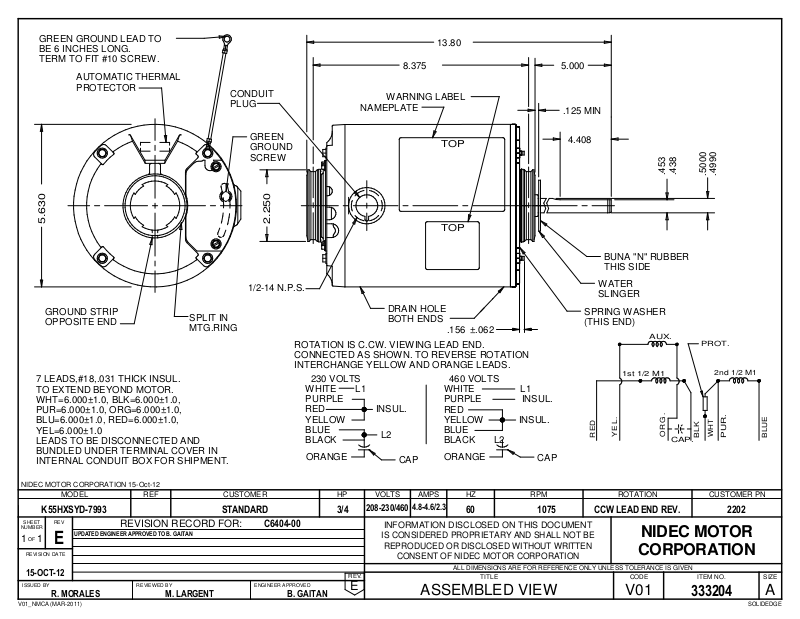

ASSEMBLED VIEW
CCW LEAD END REV. 2202
NIDEC MOTOR
CORPORATION
V01
333204
A
SOLIDEDGEV01_NMCA (MAR-2011)
