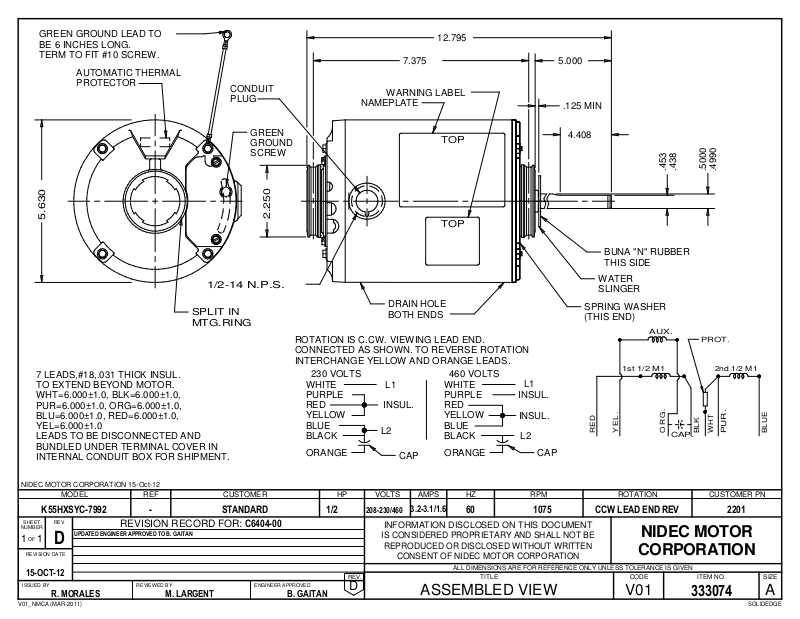

US Motors 2201 Dimensional Sheet

GREEN GROUND LEAD TO
BE 6 INCHES LONG.
TERM TO FIT #10 SCREW.

AUTOMATIC THERMAL
PROTECTOR

CONDUIT
PLUG

7.375

WARNING LABEL

NAMEPLATE

12.795

5.000

.125 MIN

0
3
6

.
5

1/2-14 N.P.S.

SPLIT IN
MTG.RING

7 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHT=6.000±1.0, BLK=6.000±1.0,
PUR=6.000±1.0, ORG=6.000±1.0,
BLU=6.000±1.0, RED=6.000±1.0,
YEL=6.000±1.0
LEADS TO BE DISCONNECTED AND
BUNDLED UNDER TERMINAL COVER IN
INTERNAL CONDUIT BOX FOR SHIPMENT.

GREEN
GROUND
SCREW

0
5
2

.
2

TOP

TOP

DRAIN HOLE
BOTH ENDS

ROTATION IS C.CW. VIEWING LEAD END.
CONNECTED AS SHOWN. TO REVERSE ROTATION
INTERCHANGE YELLOW AND ORANGE LEADS.

230 VOLTS
WHITE
PURPLE
RED
YELLOW
BLUE
BLACK

ORANGE

L1

INSUL.

L2

CAP

460 VOLTS
WHITE
PURPLE
RED
YELLOW
BLUE
BLACK

ORANGE

INSUL.

INSUL.

L2

L1

CAP

4.408

BUNA "N" RUBBER
THIS SIDE

WATER
SLINGER

SPRING WASHER
(THIS END)

1st 1/2 M1

.
L

D

E

E

Y

R

AUX.

3
5
4

.

.
G
R
O

CAP.

8
3
4

.

9

0

9

0

4

5

.

.

PROT.

2nd 1/2 M1

T

K

H

L

W

B

.
R
U
P

E
U

L
B

0

0

NIDEC MOTOR CORPORATION 15-Oct-12

MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN

K55HXSYC-7992 -

SHEET

NUMBER

1 1

REV

OF

D

REVISION DATE

UPDATED ENGINEER APPROVED TO B. GAITAN

REVISION RECORD FOR:

15-OCT-12

ISSUED BY

REVIEWED BY ENGINEER APPROVED

R. MORALES

STANDARD

C6404-00

M. LARGENT B. GAITAN

1/2

REV.

D

208-230/460

3.2-3.1/1.6

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

60 1075

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

CCW LEAD END REV 2201

NIDEC MOTOR

CORPORATION

V01

333074

A

SOLIDEDGEV01_NMCA (MAR-2011)
