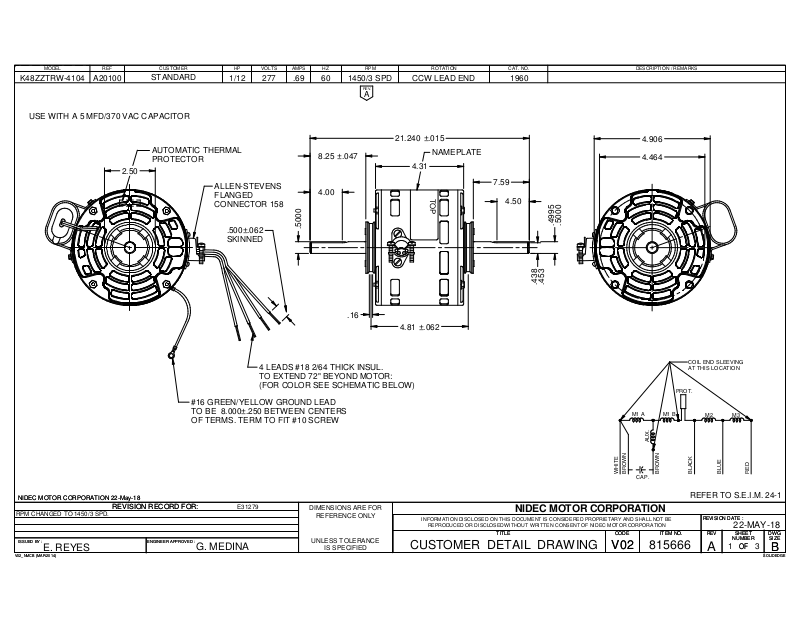

US Motors 1960 Dimensional Sheet
MODEL REF CUSTOMER
K48ZZTRW-4104
A20100
STANDARD
USE WITH A 5 MFD/370 VAC CAPACITOR
HP VOLTS AMPS
1/12
277
HZ RPM
.69
60 1450/3 SPD
REV.
ROTATION CAT. NO.
CCW LEAD END
1960
DESCRIPTION / REMARKS
A
AUTOMATIC THERMAL
PROTECTOR
2.50
8.25 ±.047
ALLEN-STEVENS
FLANGED
4.00
CONNECTOR 158
.500±.062
.5000
SKINNED
4 LEADS #18 2/64 THICK INSUL.
TO EXTEND 72" BEYOND MOTOR:
(FOR COLOR SEE SCHEMATIC BELOW)
#16 GREEN/YELLOW GROUND LEAD
TO BE 8.000±.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
.16
21.240 ±.015
NAMEPLATE
4.31
T
O
P
4.81 ±.062
7.59
4.50
4.906
4.464
.4995
.5000
.438
.453
COIL END SLEEVING
AT THIS LOCATION
PROT.
M1 A
N
E
W
T
I
O
H
R
W
B
CAP.
M1 B
.
X
U
A
N
W
O
R
B
K
C
A
L
B
M3
M2
E
D
U
E
L
B
R
NIDEC MOTOR CORPORATION 22-May-18
NIDEC MOTOR CORPORATION 22-May-18
RPM CHANGED TO 1450/3 SPD.
ISSUED BY :
ISSUED BY :
E. REYES
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E31279
G. MEDINA
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815666
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
22-MAY-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MA R-2014)
