US Motors 1901 Dimensional Sheet
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CAT. NO. DESCRIPTION / REMARKS
K48HXWNE-4465
WHOLESALE-HAC
1/6
208-230
1.0
60 1075
CCW LEAD END
1901
4.906 REF.
SEAM WELD
45°
4.464
DIA. B.C.
4 LEADS #18 .031 THICK INSULATION
TO EXTEND BEYOND MOTOR:
35.000+2-0
AUTOMATIC
THERMAL
PROTECTOR
(1) .250 STRAIGHT TYPE INSULATED
Q.C. TERM ON BLACK LEAD
5.814 ±.062
3.814 2.000 ±.047
8-32
THR'D
GROMMET
.250
.375
WARNING LABEL
4 LEADS, #18, .031 THICK INSUL. (2) YEL
& (2) ORG FOR REVERSING ROTATION
TO EXTEND BEYOND MOTOR 4.000±1.0
(3) .250 STRAIGHT TYPE Q.C. TERMS
ON WHT, BRN AND BRN/WHT LEADS
1.750
NAMEPLATE
MOUNTING:
VERTICAL SHAFT DOWN
.4995
.5000
.453
.438
DRAIN HOLES
MALE
FEMALE
T
H
W
/
N
N
R
R
B
B
L
E
Y
PROT.
YEL
AUX.
M1
ORG
G
R
O
NIDEC MOTOR CORPORATION 05-Jun-17
NIDEC MOTOR CORPORATION 05-Jun-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28697
H. NAVARRO
TOTALLY ENCLOSED MOTOR
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
K
L
B
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

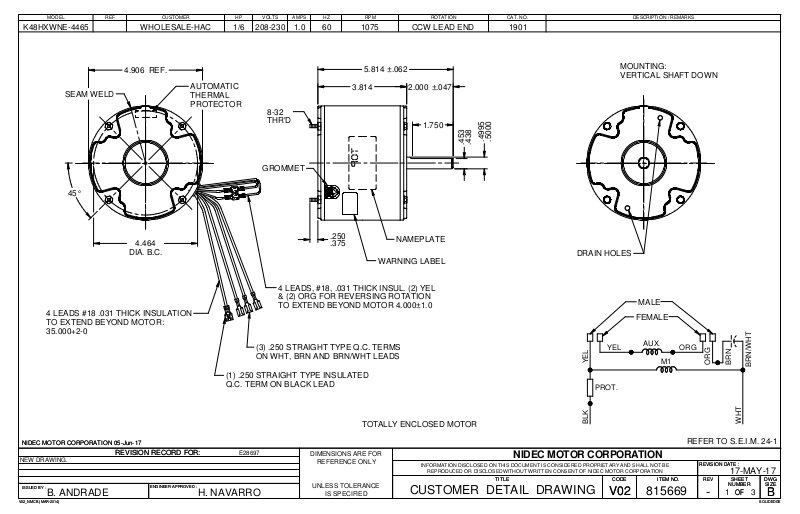

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815669
T
H
W
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
17-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
