7.850
3.625
GROUND LEAD
5.625
5.125 DIA. B.C.
3.625
7.433
AUTOMATIC THERMAL
PROTECTOR
GASKET
NAMEPLATE
4.500
.875
CONDUIT PLUG
GASKET UNDER
TERM COVER
.453
2
1
4
5
GREEN GROUND
SCREW
TOP
4.000
3.000
.438
.500
125
+.000
- .001
REV.
B
WARNING LABEL
8-32 THRD.
.344
2 TERMINAL STUD NUTS
2.750
2.500
1 EACH PER TERM. STUD
11.933
NIDEC MOTOR CORPORATION 26-Jul-13
K55HXDTU-1237
SHEET
REV
NUMBER
B
OF
1 1
REVISION DATE
26-JUL-13
ISSUED BY
A. SANCHEZ
CAPACITOR
5 MFD, 440 VAC
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
ADDED VIEW OF FLAT
REVISION RECORD FOR:
NIDEC MOTOR CANADA CORPORATION
C8011-00
REVIEWED BY ENGINEER APPROVED
B. GAITAN J.J. JUAREZ
1/3
115/208-230
4.2/2.1
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
60 1140
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

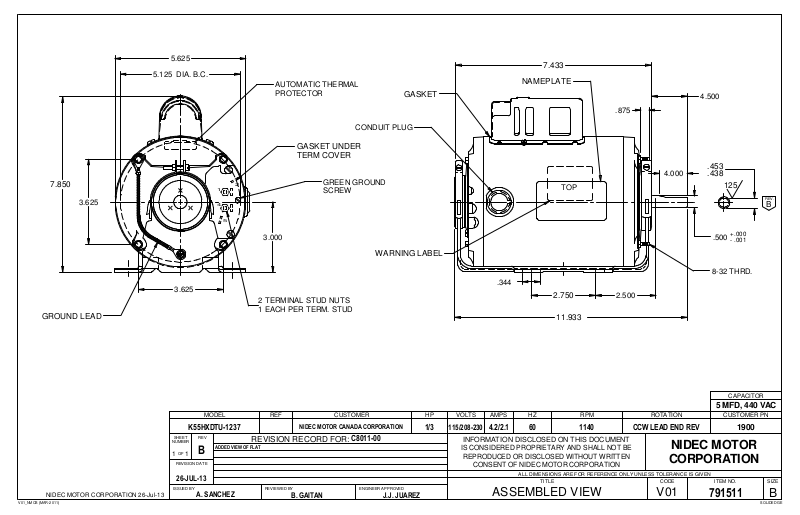

ASSEMBLED VIEW
CCW LEAD END REV
NIDEC MOTOR
CORPORATION
V01
1900
791511
B
SOLIDEDGEV01_NMCB (MAR-2011)
