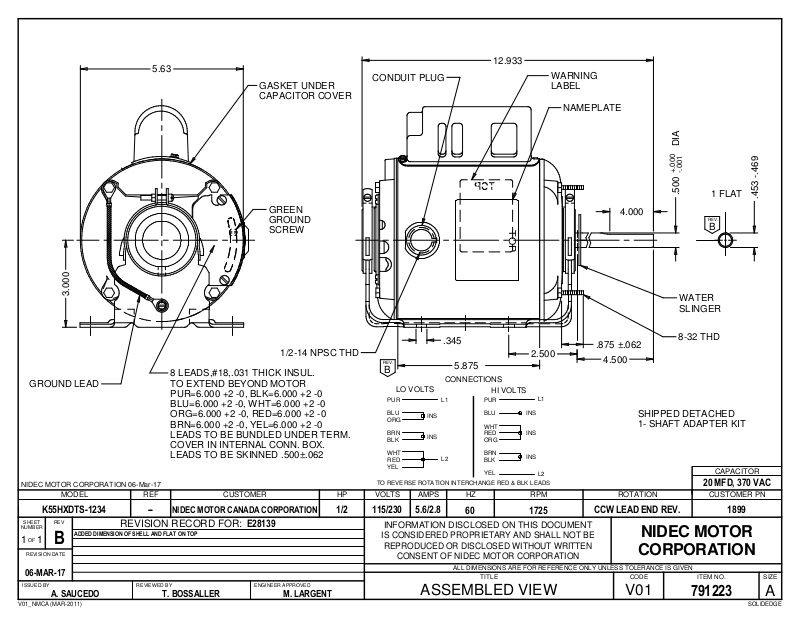

US Motors 1899 Dimensional Sheet

5.63

GASKET UNDER
CAPACITOR COVER

CONDUIT PLUG

12.933

WARNING
LABEL

NAMEPLATE

DIA

+.000

-.001

3.000

8 LEADS,#18,.031 THICK INSUL.

GROUND LEAD

TO EXTEND BEYOND MOTOR
PUR=6.000 +2 -0, BLK=6.000 +2 -0
BLU=6.000 +2 -0, WHT=6.000 +2 -0
ORG=6.000 +2 -0, RED=6.000 +2 -0
BRN=6.000 +2 -0, YEL=6.000 +2 -0
LEADS TO BE BUNDLED UNDER TERM.
COVER IN INTERNAL CONN. BOX.
LEADS TO BE SKINNED .500±.062

NIDEC MOTOR CORPORATION 06-Mar-17

MODEL REF

K55HXDTS-1234 --

SHEET

NUMBER

1 1

REV

OF

B

REVISION DATE

ADDED DIMENSION OF SHELL AND FLAT ON TOP

NIDEC MOTOR CANADA CORPORATION

REVISION RECORD FOR:

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

E28139

06-MAR-17

ISSUED BY

REVIEWED BY ENGINEER APPROVED

A. SAUCEDO T. BOSSALLER M. LARGENT

GREEN
GROUND
SCREW

1/2-14 NPSC THD

REV.

B

LO VOLTS

PUR

BLU
ORG

BRN
BLK

WHT
RED
YEL

TO REVERSE ROTATION INTERCHANGE RED & BLK LEADS

INS

INS

1/2 115/230 5.6/2.8

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

4.000

T
O

P

.345

5.875

CONNECTIONS

HI VOLTS

L1

L2

PUR

BLU

WHT
RED
ORG

BRN
BLK

YEL

60 1725

2.500

L1

INS

INS

INS

L2

.875 ±.062

4.500

SHIPPED DETACHED
1- SHAFT ADAPTER KIT

CCW LEAD END REV. 1899

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

.500

1 FLAT

REV.

B

WATER
SLINGER

8-32 THD

CAPACITOR

20 MFD, 370 VAC

CUSTOMER PN

791223

.453 -.469

A

SOLIDEDGEV01_NMCA (MAR-2011)
