Page 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTFS-8717
---
STANDARD
1/2
208-230 3.0
60
1625
C.CW LEAD END REV.
CUSTOMER PT. NO.
1892
DESCRIPTION / REMARKS
K55 ENCLOSED STUD MTD. SLV BRG.
#16 GRN/YEL GROUND LEAD TO
BE 12.000u.250 BETWEEN
CENTERS OF TERMS TERM. TO
FIT #10 SCREW
5.625
5.125OB.C.
3.625
AUTOMATIC
THERMAL
PROTECTOR
3.625
4 LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
BLK=30.000+2-0, WHT=30.000+2-0
BRN=30.000+2-0,
BRN/WHT STRIPE=30.000+2-0
BLACK DRAIN PLUG
SEE CRIT. REQ. #5
8-32 UNC
THREAD
GROMMET SEE
CRIT. REQ. #4
3.500 ±.500
(4) LEADS #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
5.060
NAMEPLATE
TOP
T
O
P
.875 ±.062
LEADS SKINNED
.750u.062
(2) .250 STRAIGHT TYPE Q.C.
TERMS. WITH INSUL. GRIP
ON BROWN AND BRN/WHT
STRIPE LEADS.
10.610 ±.062
5.550 ±.047
REV.
B
.545
.125
4.500 ±.030
TOP
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION LABEL
WARNING LABEL TO BE
ADJACENT TO REVERSING
LEADS
ROTATION IS C.CW. VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
TOTALLY ENCLOSED
USE WITH 5.0 MFD
370-VAC CAPACITOR
.500
90°
.469
.453
PROT.
BLACK
L1 TO BLK
L2 TO WHT
AUX.
MAIN
YELLOW
YELLOW
ORANGE
BRN/WHT
STRIPE
ORANGE
E
T
I
H
W
TO
CAPACITOR
MALE
BROWN
FEMALE
NIDEC MOTOR CORPORATION 29-Jul-19
NIDEC MOTOR CORPORATION 29-Jul-19
CHANGED SHAFT DIMENSION TO 5.550
ISSUED BY :
ISSUED BY :
E. GONZALEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E34980
M. DE LEON
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

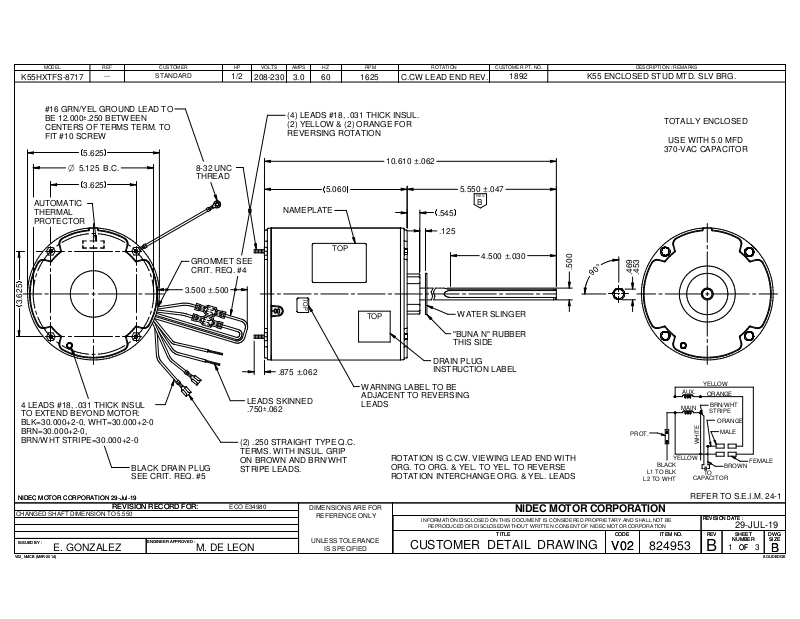

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824953
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
B
29-JUL-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
