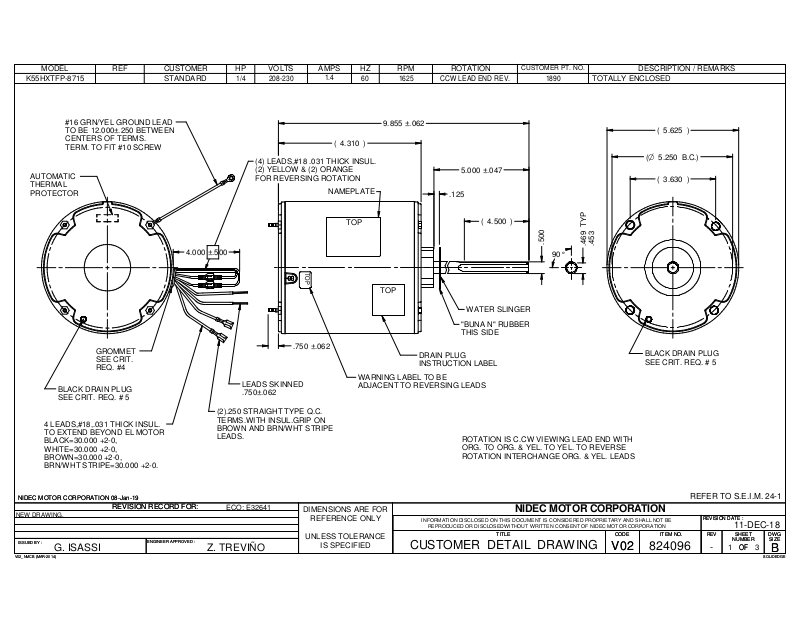

US Motors 1890 Dimensional Sheet

MODEL REF

K55HXTFP-8715

CUSTOMER STANDARD

1/4

VOLTS 208-230

AMPS

1.4

RPM

1625

ROTATION

CCW LEAD END REV.

CUSTOMER PT. NO.

1890

TOTALLY ENCLOSED

DESCRIPTION / REMARKS

#16 GRN/YEL GROUND LEAD TO BE 12.000±.250 BETWEEN CENTERS OF TERMS. TERM. TO FIT #10 SCREW

AUTOMATIC THERMAL PROTECTOR

GROMMET SEE CRIT. REQ. #4

BLACK DRAIN PLUG SEE CRIT. REQ. # 5

4 LEADS,#18,.031 THICK INSUL. TO EXTEND BEYOND EL MOTOR BLACK=30.000 +2-0, WHITE=30.000 +2-0, BROWN=30.000 +2-0, BRN/WHT STRIPE=30.000 +2-0.

4.000 ±.500

(2).250 STRAIGHT TYPE Q.C. TERMS.WITH INSUL.GRIP ON BROWN AND BRN/WHT STRIPE LEADS.

4.310( )

(4) LEADS,#18 .031 THICK INSUL. (2) YELLOW & (2) ORANGE FOR REVERSING ROTATION

NAMEPLATE

T O P

.750 ±.062

LEADS SKINNED .750±.062

9.855 ±.062

.125

TOP

DRAIN PLUG INSTRUCTION LABEL

WARNING LABEL TO BE ADJACENT TO REVERSING LEADS

5.000 ±.047

4.500( )

.500

.469 TYP

.453

90°

WATER SLINGER

"BUNA N" RUBBER THIS SIDE

ROTATION IS C.CW VIEWING LEAD END WITH ORG. TO ORG. & YEL. TO YEL. TO REVERSE ROTATION INTERCHANGE ORG. & YEL. LEADS

5.625( )

5.250(

B.C.)

3.630( )

BLACK DRAIN PLUG SEE CRIT. REQ. # 5

NIDEC MOTOR CORPORATION 08-Jan-19

NEW DRAWING.

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

ENGINEER APPROVED :

ECO: E32641

Z. TREVIÑO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

CODE ITEM NO.

V02

824096

REFER TO S.E.I.M. 24-1

REVISION DATE :

REV

11-DEC-18

SHEET

NUMBER

1 3

DWG

SIZE

SOLIDEDGEV02_NMCB (MAR-2014)
