Page 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTEJ-8603
A11769
STANDARD
1/2
1.55 60 825
460
CCW LEAD END REV
TERMINAL TO FIT #10 STUD
#16 GRN/YEL GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMINALS
(4) LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHITE= 36.000±1.5, BLACK= 36.000±1.5
BROWN= 36.000±1.5, BRN/WHT= 36.000±1.5
AUTOMATIC
THERMAL
PROTECTOR
#8-32 TYP.
6.312 REF
NAMEPLATE
GROMMET
SEE ASSEM.
INST. #1
TOP
4
.
2
5
0
±
.
5
0
0
.875 ±.062
DRAIN HOLES WITH PLUG
(BOTH ENDS) SEE ASSM.
INST. #2
DRAIN PLUG
INSTRUCTION LABEL
REVERSING LEADS
(2) YEL & (2) ORG
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
12.857 ±.062
T
O
P
CAT. NO.
1882
6.000 ±.047
.062 REF
5.000
WATER SLINGER
SPRING WASHER
(THIS END)
ENCLOSED ENDSHIELD
(BOTH ENDS)
DESCRIPTION / REMARKS
5.625
5.125 B.C. DIA
2 FLATS
90° FLATS
+.0000
-.0005
.5000
.469
.453
.469
.453
NIDEC MOTOR CORPORATION 09-Jun-17
NIDEC MOTOR CORPORATION 09-Jun-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28787
H. NAVARRO
(4) .250 STRAIGHT Q.C. TERMINALS
WITH INSULATION GRIP
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

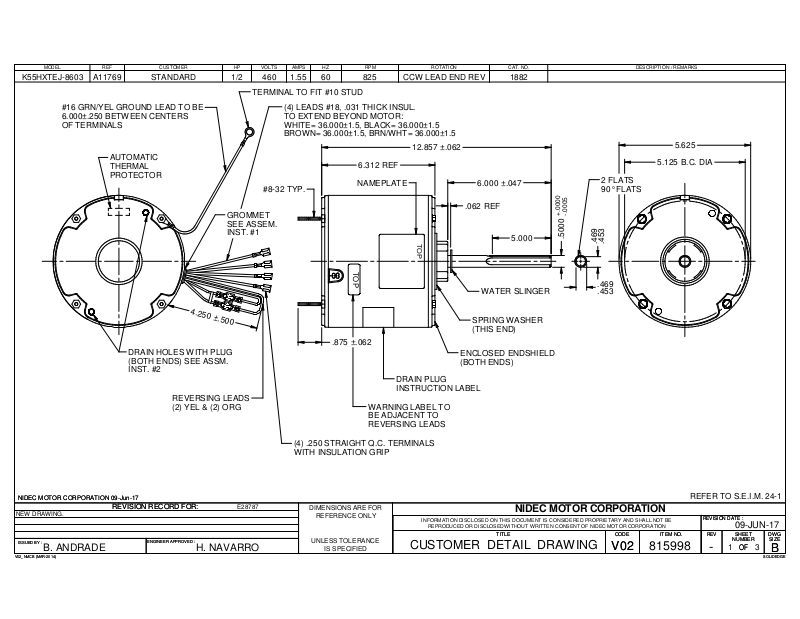

CUSTOMER DETAIL DRAWING
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815998
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
09-JUN-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
