MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
K55HXTEC-8578
A10724
STANDARD
1/4
460
1.0 60 825
CCW LEAD END REV
TERMINAL TO FIT #10 STUD
#16 GRN/YEL GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMINALS
(4) LEADS #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHITE= 36.000±1.5, BLACK= 36.000±1.5
BROWN= 36.000±1.5, BRN/WHT= 36.000±1.5
AUTOMATIC
THERMAL
PROTECTOR
5.062
NAMEPLATE
11.607
CAT. NO.
1880
6.000 ±.047
DESCRIPTION / REMARKS
5.125
NIDEC MOTOR CORPORATION 09-Jun-17
NIDEC MOTOR CORPORATION 09-Jun-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
DRAIN HOLES
WITH PLUG
SEE ASSM.
INST. #1
REVERSING LEADS
(2) YEL & (2) ORG
ENGINEER APPROVED :
ENGINEER APPROVED :
4
.
2
5
0
±
.
5
0
0
E28787
H. NAVARRO
T
O
P
TOP
.875 ±.062
DRAIN PLUG
INSTRUCTION LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
(4) .250 STRAIGHT Q.C. TERMINALS
WITH INSULATION GRIP
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

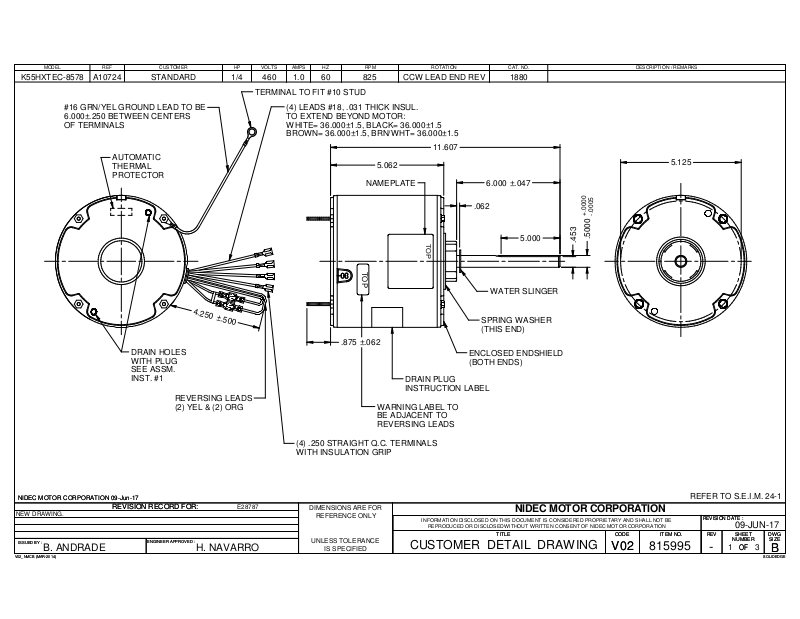

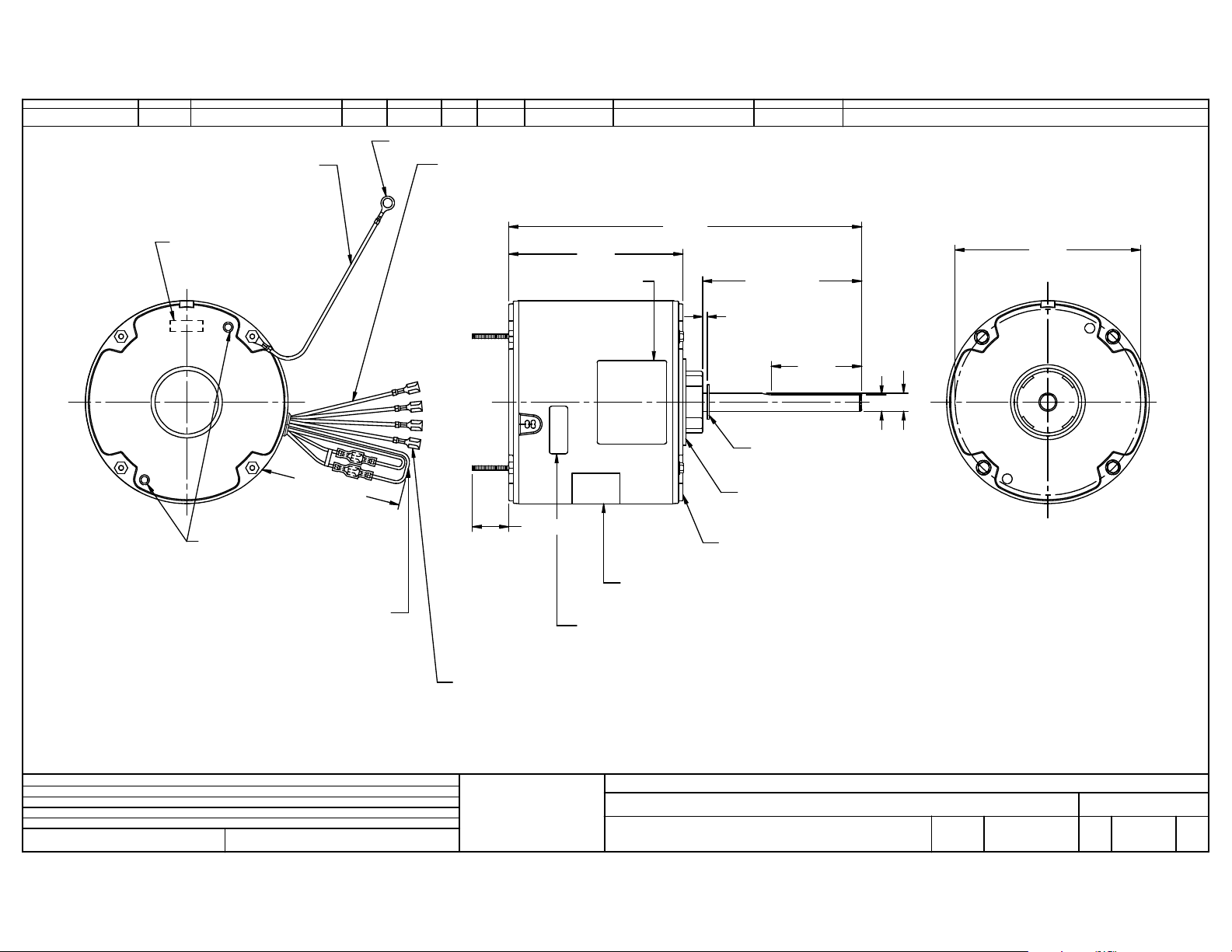

CUSTOMER DETAIL DRAWING
.062
5.000
WATER SLINGER
SPRING WASHER
(THIS END)
ENCLOSED ENDSHIELD
(BOTH ENDS)
NIDEC MOTOR CORPORATION
TITLE
TITLE
+.0000
-.0005
.5000
.453
REFER TO S.E.I.M. 24-1
REVISION DATE :
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815995
REVISION DATE :
REV
REV
-
09-JUN-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
