Page 1
5.63
TO
5.13 DIA B.C.
3.63
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
#16 GRN/YEL GROUND LEAD
TO BE 12.00 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
8-32 UNC THREAD
12.36
PROT.
BLK
L1 TO BLK
L2 TO WHT
AUX.
MAIN
YELLOW
CAPACITOR
YELLOW
ORANGE
BRN/WHT
STRIPE
E
T
I
H
W
ORANGE
MALE
BROWN
FEMALE
3
6
.
3
BLACK DRAIN
PLUG
NIDEC MOTOR CORPORATION 17-Jun-14
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXTEH-8594
SHEET
NUMBER
1 1
REV
OF
E
REVISION DATE
CHANGED DIMENSION FROM 4.000 +1.000 -0.000 TO 4.000 +2.000 -0.000
17-JUN-14
ISSUED BY
I.GUTIERREZ
LEADS SKINNED
.75
REV.
E
+2.000
-0.000
(4) LEADS, #18,
.031 THICK INSUL.
4.000
(2) YELLOW &
(2) ORANGE FOR
REVERSING ROTATION.
STANDARD
REVISION RECORD FOR:
REVIEWED BY ENGINEER APPROVED
B. GAITAN B. GAITAN
D1360-00
NAMEPLATE
1.125
(2).25 STRAIGHT TYPE Q.C.
TERMS. WITH INSUL. GRIP ON
BROWN LEADS
4 LEADS, #18, .062 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=30.000 +2-0, WHITE=30.000 +2-0,
BROWN=30.000 +2-0, BRN/WHT STRIPE=30.000 +2-0
3/4
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
5.81
TOP
DRAIN PLUG INSTRUCTION LABEL
WARNING LABEL TO
BE ADJACENT TO
REVERSING LEADS
4.7
CONSENT OF NIDEC MOTOR CORPORATION
60 1075
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

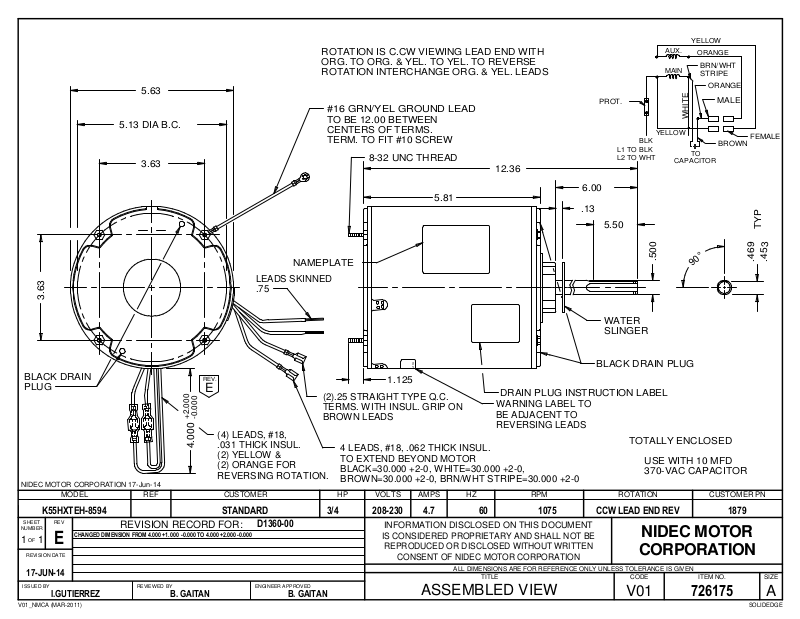

ASSEMBLED VIEW
6.00
.13
5.50
0
0
5
.
°
0
9
WATER
SLINGER
BLACK DRAIN PLUG
TOTALLY ENCLOSED
USE WITH 10 MFD
370-VAC CAPACITOR
CCW LEAD END REV 1879
NIDEC MOTOR
CORPORATION
V01
726175
P
Y
T
9
3
6
5
4
4
.
.
A
SOLIDEDGEV01_NMCA (MAR-2011)
