Page 1
B OF
B OF
REF.MODEL
CUSTOMER
WHOLESALE HACK55HXMAD-0215 3.1
HP
1/2A30015
AMPSVOLTS
60208-230
RPMHZ
1075
ROTATION
CCW LEAD END REV
1878
DESCRIPTION / REMARKSCUSTOMER PART NO.
#16 GREEN GROUND LEAD
TO BE 12.000 ±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
(4) LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=30.000+2-0;
WHITE=30.000+2-0;
BROWN=30.000+2-0;
BRN/WHT STRIPE=30.000+2-0
AUTOMATIC
THERMAL
PROTECTOR
3.625
0
.
4
GROMMET
(2) .250 FLAG TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN LEADS
LEADS SKINNED
.750 ±.062
8-32 UNC
THREAD
10.312 u.062
5.000 ±.047
5.625
5.125 DIA. B.C.
NAMEPLATE
SPRING WASHER
TOP
THIS END
4.000
2
+
0
0
0
TOP
WATER SLINGER
.4995
.469
.5000
2 FLATS
90° APART
3
9
5
6
4
4
.
.
.453
TOP
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION LABEL
AUX.
MAIN
YELLOW
ORANGE
BRN/WHT
STRIPE
(2) BLACK DRAIN
PLUGS
SEE ASSEMBLY
INSTRUCTION #2
.563 ±.062
(4) EXTRA NUTS
WARNING LABEL
REVERSING WARNING LABEL
3.625
(4) LEADS,#18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
TOTALLY ENCLOSED
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
NIDEC MOTOR CORPORATION 17-May-17
CREATED DRAWING.
ISSUED BY :
REVISION RECORD FOR:
ENGINEER APPROVED :
G. MEDINA
ROTATION INTERCHANGE ORG. & YEL. LEADS
ECO E28698
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
TO BE ADJACENT TO LEAD HOLE
PROT.
USE WITH 10 MFD
370-VAC
CAPACITOR
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITT EN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

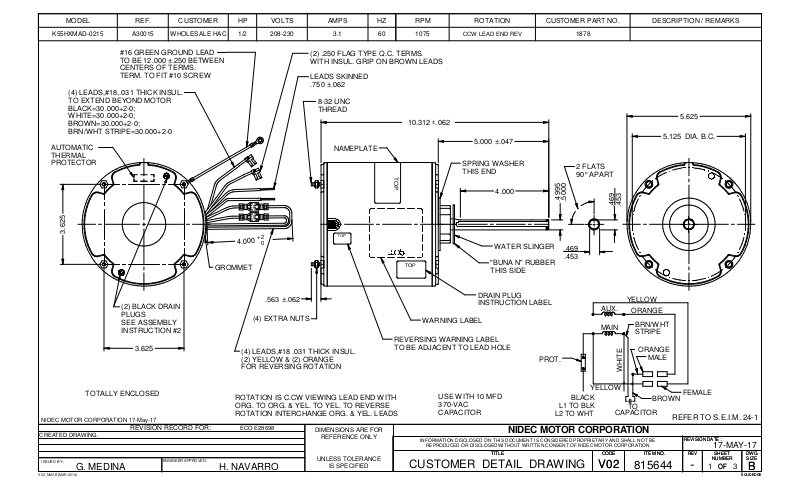

CUSTOMER DETAIL DRAWING
BLACK
L1 TO BLK
L2 TO WHT
E
T
I
H
W
YELLOW
TO
CAPACITOR
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815644
ORANGE
MALE
BROWN
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
17-MAY-17
REV
REV
-
SHEET
SHEET
NUMBER
NUMBER
1 3
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
