REF.MODEL
#16 GREEN GROUND LEAD
TO BE 12.000 ±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
(4) LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=30.000+2-0;
WHITE=30.000+2-0;
BROWN=30.000+2-0;
BRN/WHT STRIPE=30.000+2-0
AUTOMATIC
THERMAL
PROTECTOR
CUSTOMER
WHOLESALE HACK55HXMAF-0217 1.5
HP
AMPSVOLTS
(2) .250 FLAG TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN LEADS
LEADS SKINNED
.750 ±.062
8-32 UNC
THREAD
NAMEPLATE
RPMHZ
60208-2301/4A29824 1876
1075
ROTATION
CCW LEAD END REV
9.562 u.062
5.000 ±.047
TOP
SPRING WASHER
DESCRIPTION / REMARKSCUSTOMER PART NO.
5.625
5.125 DIA. B.C.
3.625
(2) BLACK DRAIN
PLUGS
SEE ASSEMBLY
INSTRUCTION #2
3.625
TOTALLY ENCLOSED
NIDEC MOTOR CORPORATION 25-May-17
CREATED DRAWING.
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
ENGINEER APPROVED :
2
+
0
0
0
.
4
0
GROMMET
(4) EXTRA NUTS
(4) LEADS,#18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
ROTATION IS C.CW VIEW ING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
ECO E28698
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
TOP
.563 ±.062
4.000
.4995
.5000
.438
.453
WATER SLINGER
TOP
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION LABEL
AUX.
WARNING LABEL
MAIN
REVERSING WARNING LABEL
TO BE ADJACENT TO LEAD HOLE
PROT.
YELLOW
USE WITH 5.0 MFD
370-VAC
CAPACITOR
BLACK
L1 TO BLK
L2 TO WHT
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

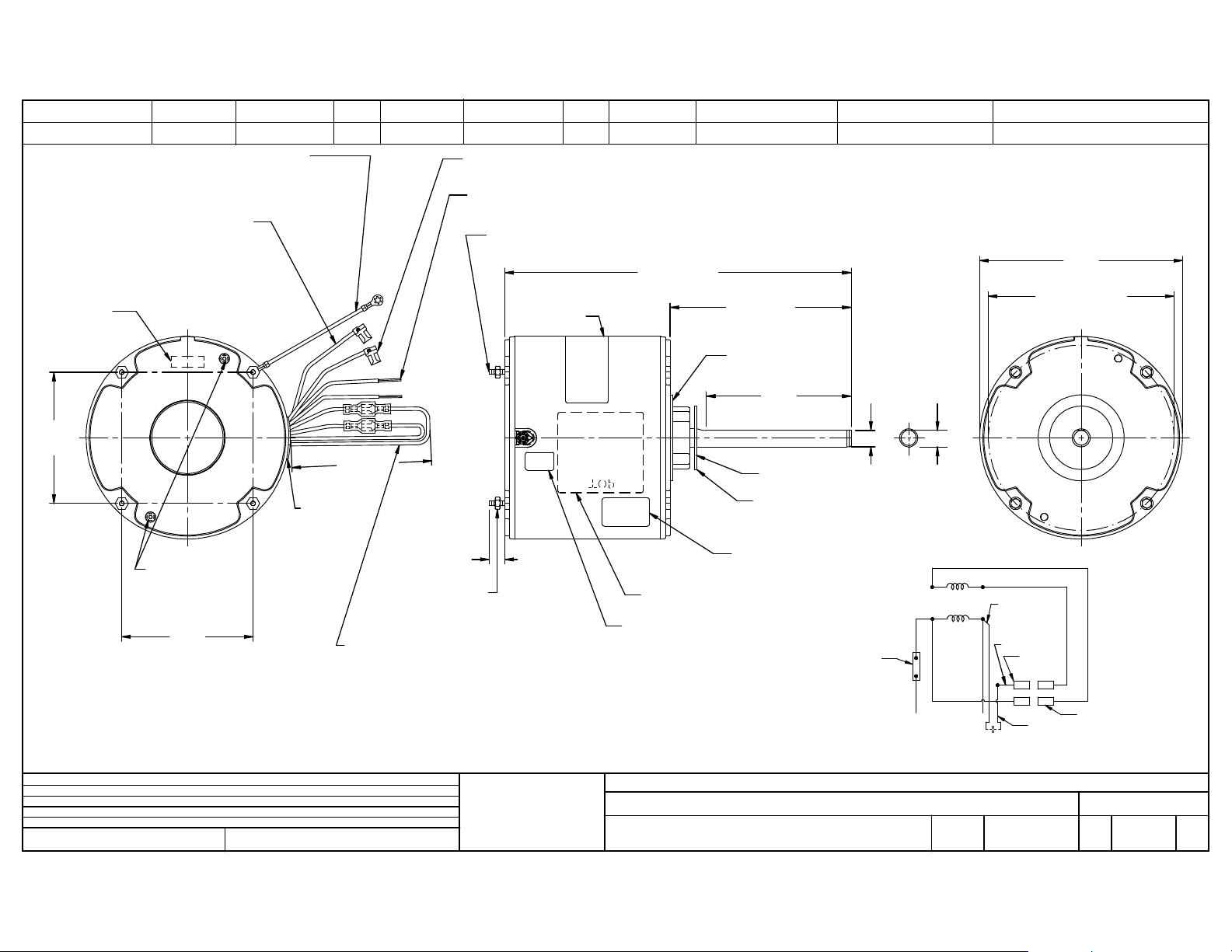

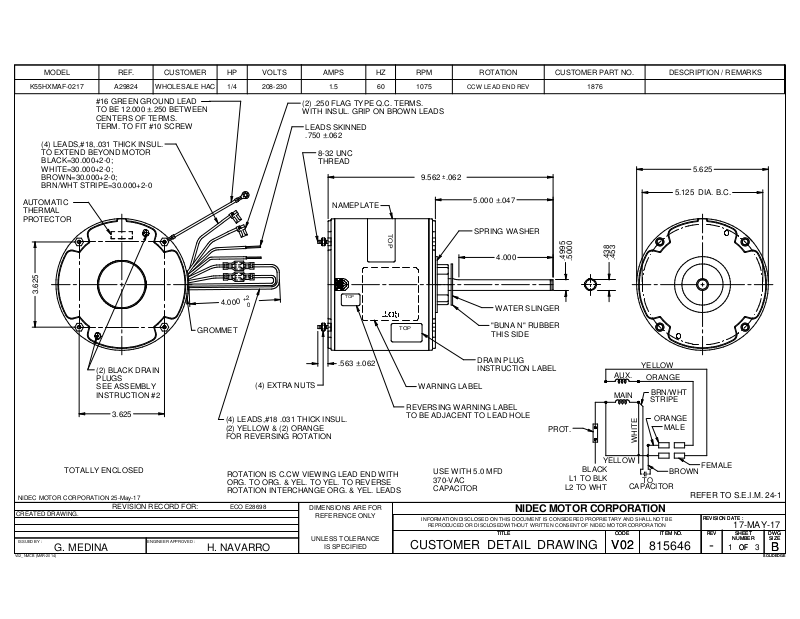

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
YELLOW
ORANGE
BRN/WHT
STRIPE
ORANGE
E
T
MALE
I
H
W
TO
CAPACITOR
815646
BROWN
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
1 3
-
17-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGE
B
B
