Page 1
B OF
B OF
MODEL
K55HXCLL-1467
REF
D35132-X3
CUSTOMER
WHOLESALE-HAC
HP
1/3-1/5
AMPS
2.4-1.4
RPM
HZ
60
825
C.CW. LEAD END REV208-230
ROTATION
CUSTOMER PARTVOLTS
-------
K55 STUD MTD., SELF - ALIGN SLEEVE BRG.
DESCRIPTION / REMARKS
#16 GREEN GROUND LEAD
TO BE 12.000u.250 BETWEEN
CENTERS OF TERMS. TERM.
TO FIT #10 SCREW
AUTOMATIC
THERMAL
PROTECTOR
3.625
.
P
Y
T
°
0
9
3.625
BLACK DRAIN PLUG
SEE CRIT. REQ. #4
(4) LEADS #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
4 LEADS #18, .031 THICK INSUL TO
EXTEND BEYOND MOTOR:
BLK=30.000+2-0, WHT=30.000+2-0,
BRN=30.000+2-0,
BRN/WHT=30.000+2-0
NIDEC MOTOR CORPORATION 03-Dec-18
NIDEC MOTOR CORPORATION 03-Dec-18
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
(2) .250 STRAIGTH TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN AND
BRN/WHT STRIPE LEADS
F. GARCIA
(2) LEADS SKINNED .750u.062
REVISION RECORD FOR:
REVISION RECORD FOR:
3
0
°
60°
ENGINEER APPROVED :
ENGINEER APPROVED :
0
.
2
±
0
0
0
.
4
M. DE LEON
ECO: E32856
5.062
GROMMET
NAMEPLATE
TOP
T
O
P
.718 ±.062
.875 ±.062
WARNING LABEL TO BE
CENTERED ADJACENT
TO LEAD HOLE
(4) 8-18 SCREWS SUPPLIED
IN SHELL (SEE CRIT. REQ. #3)
4 EXTRA SERRA TED NUTS
ROTATION IS C.CW. VIEW ING LEAD END
WITH ORG. TO ORG. & YEL. TO YEL. TO
REVERSE INTECHANGE ORG. & YEL. LEADS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
11.607 ±.062
DRAIN PLUG INSTRUCTION
LABEL
6.000 ±.047
.545
.125
TOP
WATER SLINGER
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
5.500 ±.030
.5000
"BUNA N" RUBBER
THIS SIDE
BLACK DRAIN PLUG
SEE CRIT. REQ. #4
LACE LEAD TO WDG.
AT THIS LOC.
NIDEC MOTOR CORPORATION
TITLE
TITLE
+.0000
-.0005

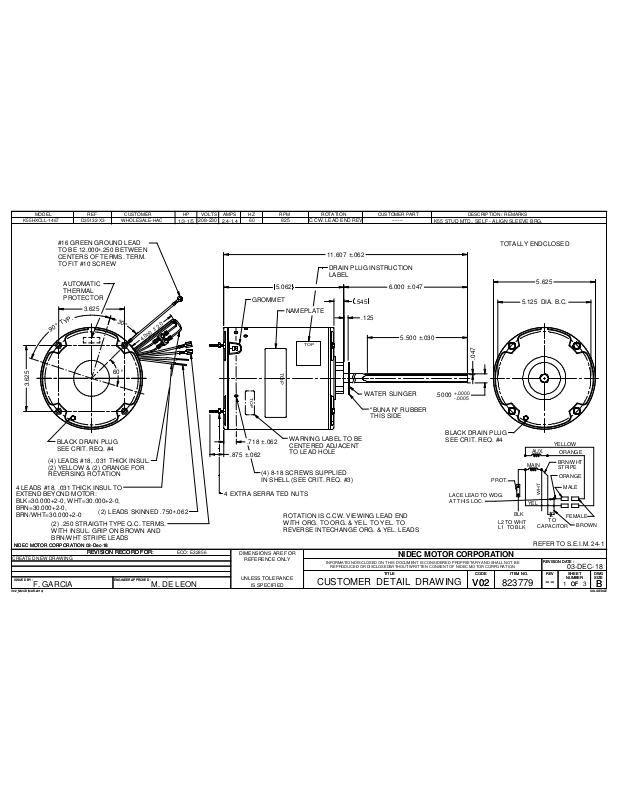

CUSTOMER DETAIL DRAWING
TOTALLY ENDCLOSED
.047
PROT.
BLK
L2 TO WHT
L1 TO BLK
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823779
5.625
5.125 DIA. B.C.
YELLOW
AUX.
ORANGE
MAIN
YEL
BRN/WHT
STRIPE
ORANGE
WHT
TO
CAPACITOR
MALE
FEMALE
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
03-DEC-18
REV
SHEET
REV
SHEET
NUMBER
NUMBER
1 3
--
BROWN
DWG
DWG
SIZE
SIZE
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
