Page 1
K55HXSRA-4512
CUSTOMER HZ
STANDARD
HPMODEL CATALOG NO.
1/10 601 825
VOLTSREF
208-230
AMPS DESCRIPTION / REMARKS
RPM
ROTATION
CCW LEAD END REV
1871
(2) .250 STRAIGHT TYPE
Q.C. TERMS. WITH INSUL.
GRIP ON BROWN LEADS
#16 GRN/YEL GROUND LEAD
TO BE 12.000 u.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
AUTOMATIC
THERMAL
PROTECTOR
BLACK DRAIN PLUG
SEE ASSEMBLY
INSTRUCTION #2
(4) LEADS, #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION
ROTATION IS C.CW. VIEWING LEAD END
WITH ORG TO ORG & YEL TO YEL TO
REVERSE INTERCHANGE ORG & YEL LEADS
5.625
WARNING LABEL
TO BE ADJACENT TO
10.357
6.000u.047
REVERSING LEADS
DRAIN PLUG
INSTRUCTION
LABEL
TOP
.125
TOP
TOP
5.125 DIA. B.C.
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
4.000 +2-0
1.250u.062
NAMEPLATE
BLACK DRAIN PLUG
SEE ASSEMBLY
INSTRUCTION #2
REV.
A
(2) LEADS SKINNED .750 u.062
TOTALLY ENCLOSED
4 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
BLACK= 30.000 +2-0, WHITE= 30.000 +2-0,
BROWN= 30.000 +2-0, BRN/WHT STRIPE= 30.000 +2-0
NIDEC MOTOR CORPORATION 02-Aug-17
NIDEC MOTOR CORPORATION 02-Aug-17
CHANGED LEADS EXIT FROM 9:00 TO 3:00
ISSUED BY :
ISSUED BY :
C.ALMAGUER
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E29377
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

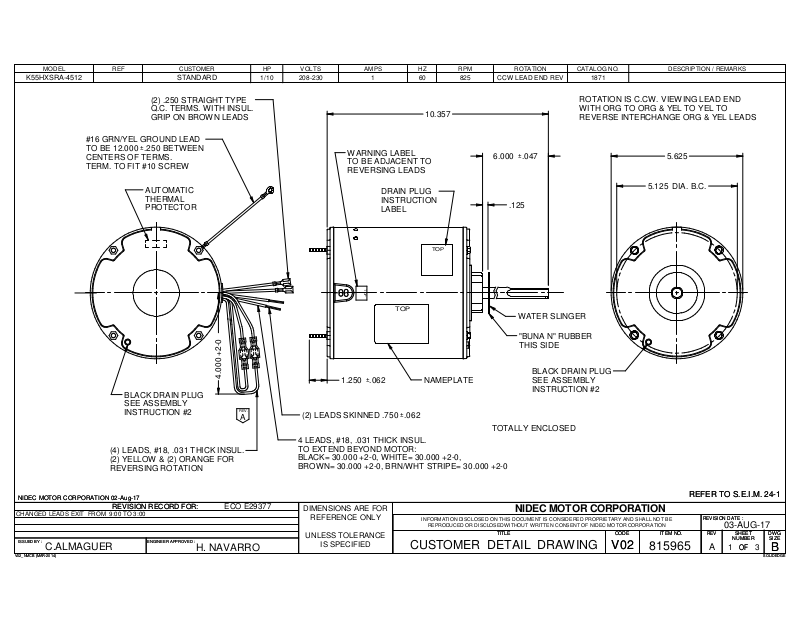

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815965
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
03-AUG-17
REV
REV
A
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
