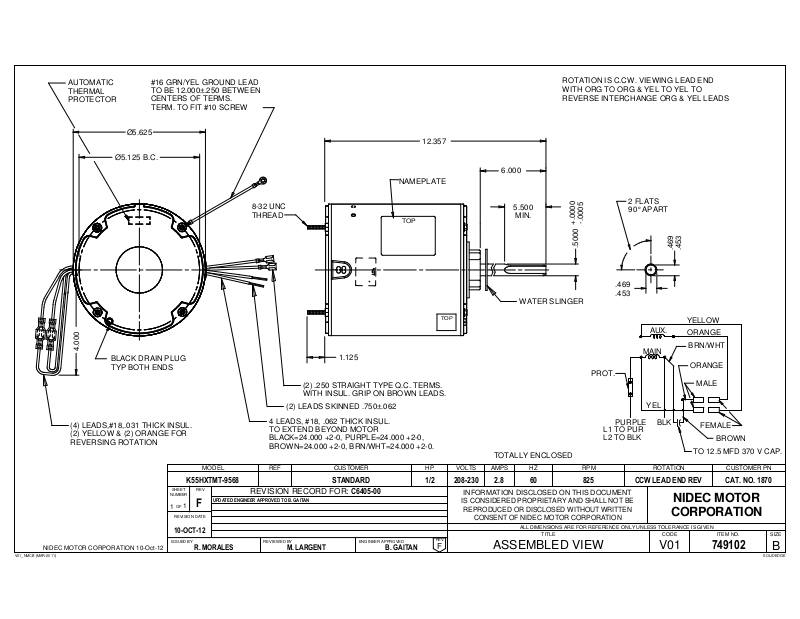

US Motors 1870 Dimensional Sheet

AUTOMATIC
THERMAL
PROTECTOR

#16 GRN/YEL GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW

ROTATION IS C.CW. VIEW ING LEAD END
WITH ORG TO ORG & YEL TO YEL TO
REVERSE INTERCHANGE ORG & YEL LEADS

Ø5.625

Ø5.125 B.C.

4.000
BLACK DRAIN PLUG

TYP BOTH ENDS

(4) LEADS,#18,.031 THICK INSUL.
(2) YELLOW & (2) ORANGE FOR
REVERSING ROTATION

NIDEC MOTOR CORPORATION 10-Oct-12

K55HXTMT-9568

SHEET

REV

NUMBER

F

OF

1

1

REVISION DATE

10-OCT-12

ISSUED BY

R. MORALES

8-32 UNC
THREAD

4 LEADS, #18, .062 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=24.000 +2-0, PURPLE=24.000 +2-0,
BROWN=24.000 +2-0, BRN/WHT=24.000 +2-0.

MODEL REF

UPDATED ENGINEER APPROVED TO B. GAITAN

REVISION RECORD FOR:

REVIEWED BY ENGINEER APPROVED

NAMEPLATE

TOP

1.125

(2) .250 STRAIGHT TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN LEADS.

(2) LEADS SKINNED .750±.062

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

STANDARD

C6405-00

M. LARGENT B. GAITAN

12.357

TOP

1/2 208-230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

REV.

F

6.000

5.500
MIN.

-.0005

+.0000

.5000

WATER SLINGER

PROT.

L1 TO PUR
L2 TO BLK

TOTALLY ENCLOSED

2.8

CONSENT OF NIDEC MOTOR CORPORATION

60 825

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

ASSEMBLED VIEW

2 FLATS
90° APART

9

3

6

5

4

4

.

.

.469
.453

YELLOW

AUX.

MAIN

ORANGE

BRN/WHT

ORANGE

MALE

YEL

PURPLE

BLK

FEMALE

BROWN

TO 12.5 MFD 370 V CAP.

CCW LEAD END REV CAT. NO. 1870

NIDEC MOTOR

CORPORATION

V01

749102

CUSTOMER PN

SOLIDEDGEV01_NMCB (MAR-2011)

B
