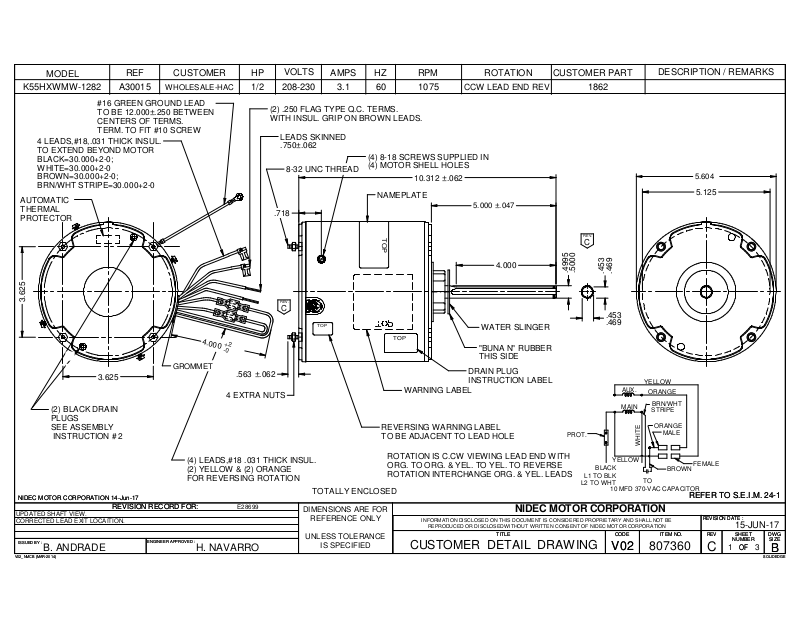

US Motors 1862 Dimensional Sheet

MODEL

K55HXWMW-1282

4 LEADS,#18,.031 THICK INSUL. TO EXTEND BEYOND MOTOR BLACK=30.000+2-0; WHITE=30.000+2-0 BROWN=30.000+2-0; BRN/WHT STRIPE=30.000+2-0

AUTOMATIC THERMAL PROTECTOR

A30015

#16 GREEN GROUND LEAD TO BE 12.000±.250 BETWEEN CENTERS OF TERMS. TERM. TO FIT #10 SCREW

REF

CUSTOMER

WHOLESALE-HAC

VOLTS

208-2301/2

AMPS

3.1 1075

(2) .250 FLAG TYPE Q.C. TERMS. WITH INSUL. GRIP ON BROWN LEADS.

LEADS SKINNED .750±.062

(4) 8-18 SCREWS SUPPLIED IN

8-32 UNC THREAD

(4) MOTOR SHELL HOLES

NAMEPLATE

.718

RPMHZ

10.312 ±.062

CCW LEAD END REV

CUSTOMER PARTROTATION

1862

DESCRIPTION / REMARKS

5.604

5.125

5.000 ±.047

TOP

REV.

3.625

(2) BLACK DRAIN PLUGS SEE ASSEMBLY INSTRUCTION # 2

NIDEC MOTOR CORPORATION 14-Jun-17

UPDATED SHAFT VIEW. CORRECTED LEAD EXIT LOCAITION.

ISSUED BY :

B. ANDRADE

REVISION RECORD FOR:

GROMMET

(4) LEADS,#18 .031 THICK INSUL. (2) YELLOW & (2) ORANGE FOR REVERSING ROTATION

ENGINEER APPROVED :

.563 ±.062

4 EXTRA NUTS

E28699

H. NAVARRO

REV.

TOP

TOTALLY ENCLOSED

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

4.000

WATER SLINGER

TOP

"BUNA N" RUBBER THIS SIDE

DRAIN PLUG INSTRUCTION LABEL

WARNING LABEL

REVERSING WARNING LABEL TO BE ADJACENT TO LEAD HOLE

ROTATION IS C.CW VIEWING LEAD END WITH ORG. TO ORG. & YEL. TO YEL. TO REVERSE ROTATION INTERCHANGE ORG. & YEL. LEADS

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

TITLE

CUSTOMER DETAIL DRAWING

.4995

.5000

PROT.

.453

.469

.453 .469

AUX.

MAIN

YELLOW

BLACK

L1 TO BLK

L2 TO WHT

10 MFD 370-VAC CAPACITOR

CODE ITEM NO.

V02

YELLOW

ORANGE

BRN/WHT STRIPE

ORANGE

E T

MALE

I H

807360

FEMALE

BROWN

REFER TO S.E.I.M. 24-1

REVISION DATE :

REV

1 3

15-JUN-17

SHEET

NUMBER

SOLIDEDGEV02_NMCB (MAR-2014)
