Page 1
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CAT. NO. DESCRIPTION / REMARKS
K55HXWMT-1281
A29826
WHOLESALE - HAC
1/3
208-230
2.0
60 1075
CCW LEAD END REV
1861
4 LEADS, #18 .031 THICK INSUL
#16 GREEN GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
TO EXTEND BEYOND MOTOR
BLACK= 30.000+2-0, WHITE= 30.000+2-0
BROWN= 30.000+2-0
BRN/WHT STRIPE= 30.000+2-0
(4) 8-18 SCREWS SUPPLIED
IN (4) MOTOR SHELL HOLES
(2) .250 FLAG TYPE Q.C. TERMS.
WITH INSUL GRIP ON BROWN LEADS
AUTOMATIC
THERMAL
PROTECTOR
LEADS SKINNED
.750±.062
.718
10.062 ±.062
NAMEPLATE
5.000 ±.047
TOP
TYP
4.000
.4995
.5000
.453
.438
TOTALLY ENCLOSED
5.625
(2) BLACK DRAIN
PLUGS SEE ASSEM.
INST. #2
5.125 DIA. B.C.
(4) LEADS #18, .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
NIDEC MOTOR CORPORATION 25-May-17
NIDEC MOTOR CORPORATION 25-May-17
NEW DRAWING.
ISSUED BY :
ISSUED BY :
B. ANDRADE
REVISION RECORD FOR:
REVISION RECORD FOR:
SEAM WELD
ENGINEER APPROVED :
ENGINEER APPROVED :
GROMMET
4
.
0
+
0
2
0
-
0
E28699
H. NAVARRO
4 EXTRA
NUTS
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
TOP
.563 ±.062
WATER SLINGER
TOP
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION
LABEL
WARNING LABEL
REVERSING WARNING LABEL
TO BE ADJACENT TO LEAD HOLE
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

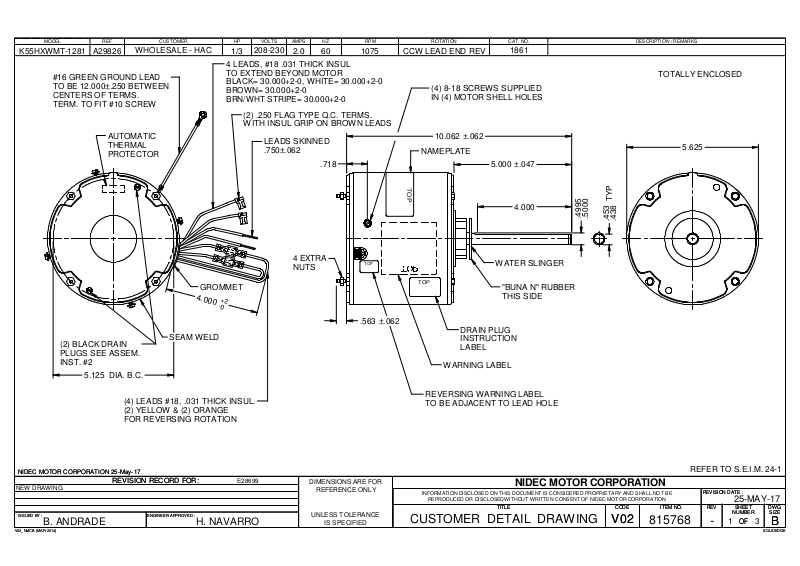

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815768
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
25-MAY-17
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
DWG
DWG
SIZE
SIZE
B
B
