MODEL REF CUSTOMER
K55HXWMR-1279
A29670-X2
WHOLESALE HAC
#16 GREEN GROUND LEAD
TO BE 12.000±.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
BLACK=30.000+2-0;
WHITE=30.000+2-0
BROWN=30.000+2-0;
BRN/WHT STRIPE=30.000+2-0
AUTOMATIC
THERMAL
PROTECTOR
3.625
GROMMET
3.625
(2) BLACK DRAIN
SEAM WELD.
PLUGS SEE ASSEMBLY
INSTRUCTION # 2
NIDEC MOTOR CORPORATION 16-Sep-15
NIDEC MOTOR CORPORATION 16-Sep-15
DELETED "SIDE SHELL HOLES" LABEL & NOTE AND CRITICAL REQ. #6
ISSUED BY :
ISSUED BY :
C.ALMAGUER
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
B. GAITAN
HP VOLTS
208-230
1/6
AMPS HZ RPM
1.0
60
(2) .250 FLAG TYPE Q.C. TERMS.
WITH INSUL. GRIP ON BROWN LEADS.
LEADS SKINNED
.750±.062
4
.
+
0
2
0
0
0
8-32 UNC
THREAD
4 EXTRA NUTS
(4) LEADS,#18 .031 THICK INSUL.
(2) YELLOW & (2) ORANGE
FOR REVERSING ROTATION
ECO E24887
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
1075
ROTATION
C.CW. LEAD END REV.
CUSTOMER PN
1859
(4) 8-18 SCREWS SUPPLIED
IN (4) MOTOR SHELL HOLES.
9.062u.062
NAMEPLATE
.718
TOP
5.000 ±.047
4.000
TOP
.563 ±.062
TOP
REV.
C
WATER SLINGER
"BUNA N" RUBBER
THIS SIDE
DRAIN PLUG
INSTRUCTION LABEL
WARNING LABEL
REVERSING WARNING LABEL
TO BE ADJACENT TO LEAD HOLE
TOTALLY ENCLOSED
ROTATION IS C.CW VIEWING LEAD END WITH
ORG. TO ORG. & YEL. TO YEL. TO REVERSE
ROTATION INTERCHANGE ORG. & YEL. LEADS
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE

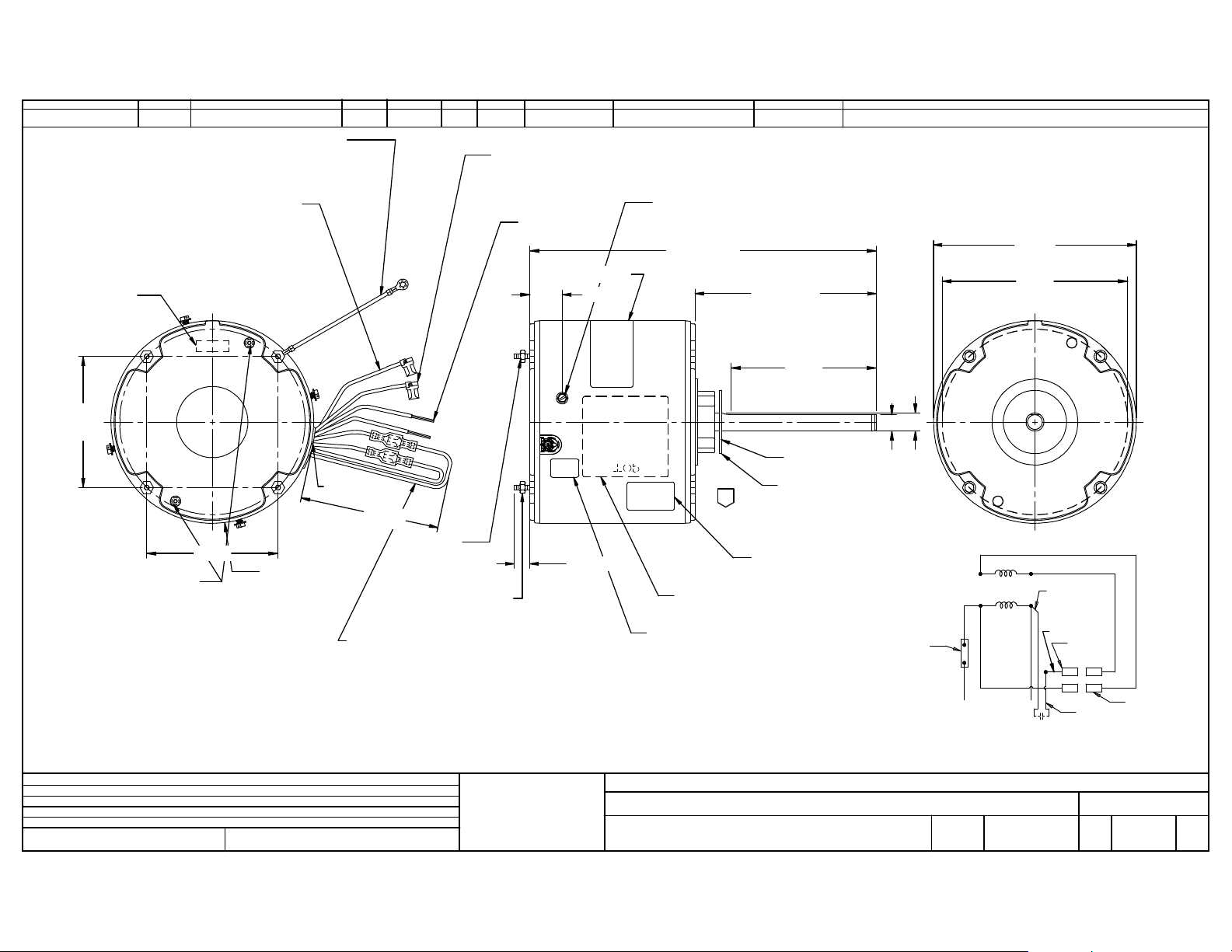

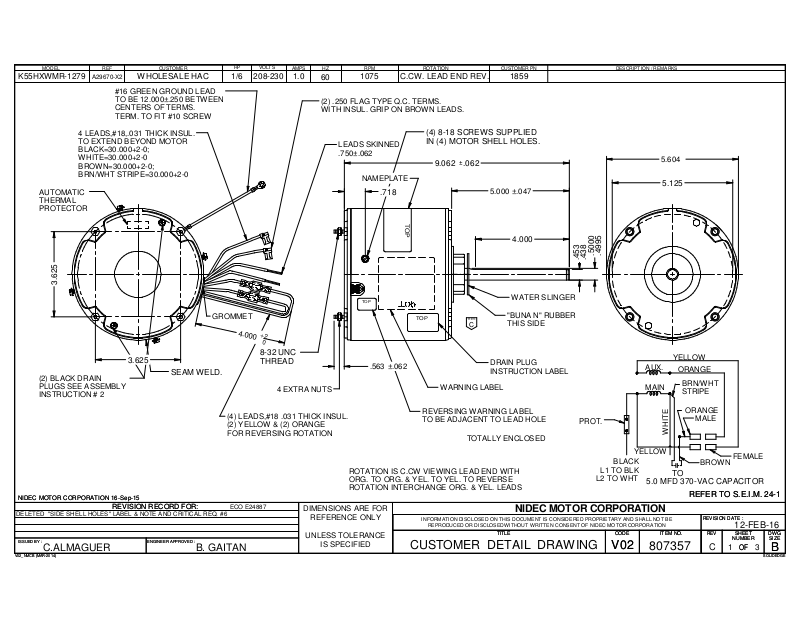

CUSTOMER DETAIL DRAWING
DESCRIPTION / REMARKS
.5000
.4995
.453
.438
AUX.
MAIN
PROT.
YELLOW
BLACK
L1 TO BLK
L2 TO WHT
5.0 MFD 370-VAC CAPACITOR
NIDEC MOTOR CORPORATION
CODE ITEM NO.
CODE ITEM NO.
V02
V02
807357
5.604
5.125
YELLOW
ORANGE
BRN/WHT
STRIPE
ORANGE
E
T
I
MALE
H
W
BROWN
TO
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
C
FEMALE
12-FEB-16
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
