Page 1
AUTOMATIC THERMAL PROTECTOR
5.625
5.125
DIA. B.C.
3.625
LOCKWASHER
BETWEEN
BELL NUT AND
SHELL
5
2
3
2
2
.
0
1
6
.
3
#18 GA. TYPE SJT THERMOPLASTIC
300V. 3 COND. CORD TO EXTEND
120±3 BEYOND MOTOR.
CORD TAPED
TO SHELL
7.312
4.170
10.357
NAMEPLATE
3.045
2.250
10-32 THR'D
WARNING
LABEL
0
5
0
0
0
0
0
0
.
.
+
-
0
7
5
4
2
0
6
.
.
NIDEC MOTOR CORPORATION 24-Jan-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXKRP-7324 -
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
UPDATED BACKGROUND TO NIDEC.
REVISION RECORD FOR:
24-JAN-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
E. VICENCIO
PULL CHAIN SWITCH
AND CORD ATTACHED
AND HANKED AND
SECURELY TAPED
INSIDE PROTECTIVE
SLEEVE
.260±.060
USEM
C4997-04
J.I. SALAZAR J.I. SALAZAR
1.250
.438 DIA.
HOLE
1/2 115 5.8
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION

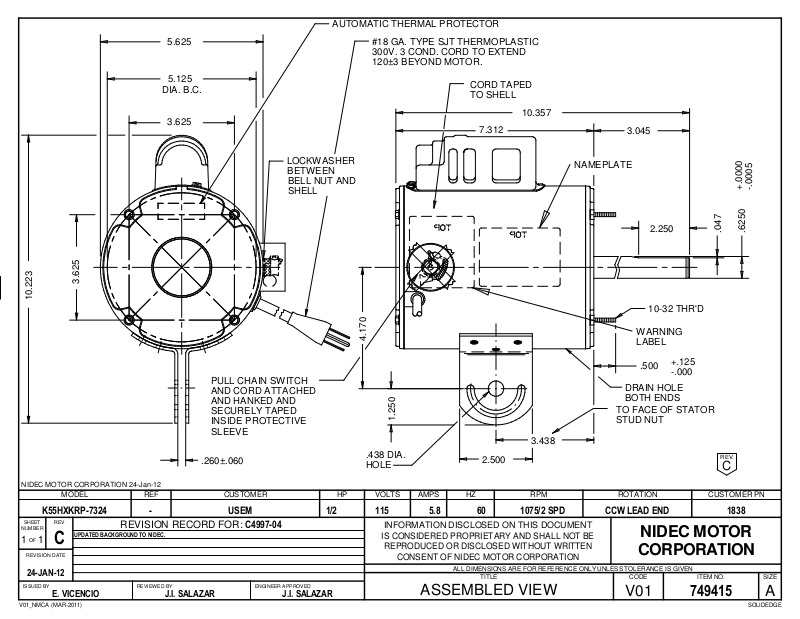

ASSEMBLED VIEW
+.125
-.000
3.438
2.500
60 1075/2 SPD
.500
DRAIN HOLE
BOTH ENDS
TO FACE OF STATOR
STUD NUT
CCW LEAD END 1838
NIDEC MOTOR
CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
V01
REV.
C
749415
A
SOLIDEDGEV01_NMCA (MAR-2011)
