US Motors 1824 Dimensional Sheet
KA55HX0WP-9031
REF
CUSTOMER
STANDARD
HPMODEL CATALOG NO.
1/2 604.5
VOLTS
230
AMPS
HZ
RPM
1075/3 SPD
ROTATION
CCW LEAD END
1824
DESCRIPTION / REMARKS
SHIPPED 1- DUMMY END SHIELD
DETACHED: 8- 8-32 NUTS
2- HUB RINGS
1- CAPACITOR
1- CAPACITOR CLAMP
1- CAPACITOR CAP
2- 10-32 SCREWS
AUTOMATIC
THERMAL
PROTECTOR
.750u.062 SKINNED
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR:
WHITE(C)= 20.000 +2-0, BLUE(2)= 20.000 +2-0,
BLACK(1)= 20.000 +2-0, RED(3)= 20.000 +2-0,
BRN= 20.000 +2-0, BRN/WHT STRIPE= 20.000 +2-0,
FIGURES TO BE INDICATED ON LEADS.
LEADS TO BE PROTECTED WITH A GROMMET
NIDEC MOTOR CORPORATION 26-May-17
NIDEC MOTOR CORPORATION 26-May-17
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
E28700
H. NAVARRO
#16 GREEN GROUND LEAD TO BE
6.000u.250 BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
24.00 ±.015
5.44
9.000
NAMEPLATE
REF.
7.500
7.78
(2) .250 STRAIGHT TYPE Q.C.
TERM. WITH INSUL. GRIP.
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG. HUB
(BOTH ENDS)
INCLUDES 5.0 MFD 370V CAPACITOR
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
9.000 ±.047
8-32
THREAD
7.500
T
O
P
2 FLATS
90v APART
.453
.469
7.97
.453
.469
.4995
.5000
IDENT. GROOVE
1.500
+.125
-.062
THIS END
T
H
W
MAIN 1 MAIN 2
E
P
I
R
T
S
T
H
W
/
CAP
N
R
B
PROT
X
U
A
N
R
B
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

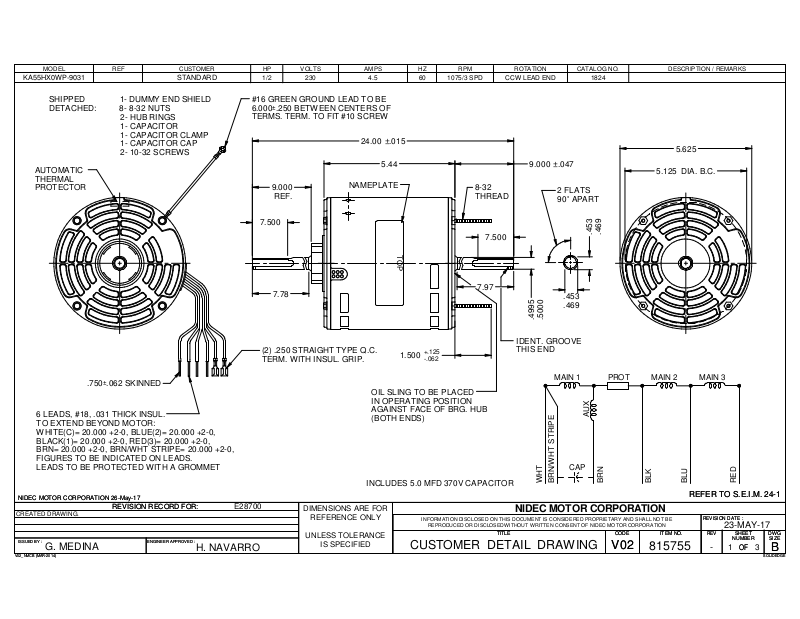

CUSTOMER DETAIL DRAWING
TITLE
TITLE
V02
V02
5.125 DIA. B.C.
K
L
B
CODE ITEM NO.
CODE ITEM NO.
815755
5.625
MAIN 3
23-MAY-17
REV
REV
-
D
E
R
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
U
L
B
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
