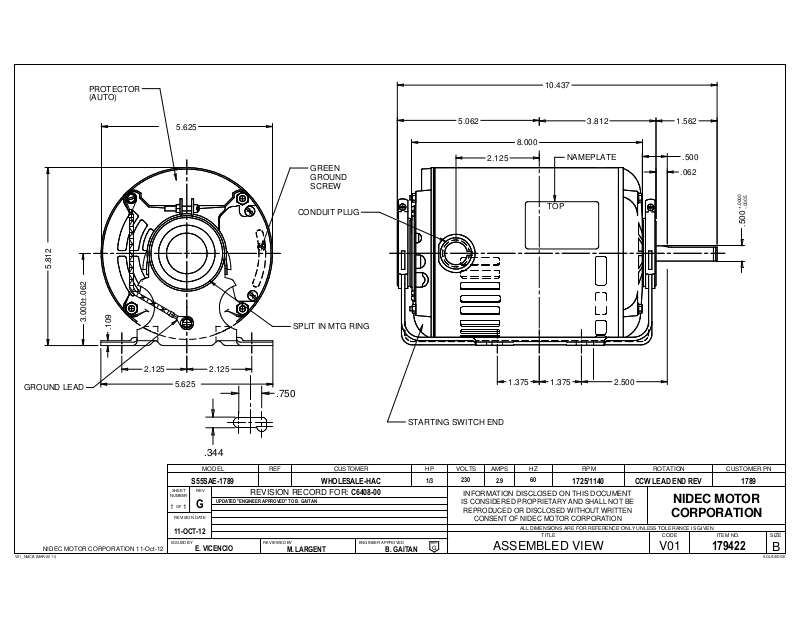

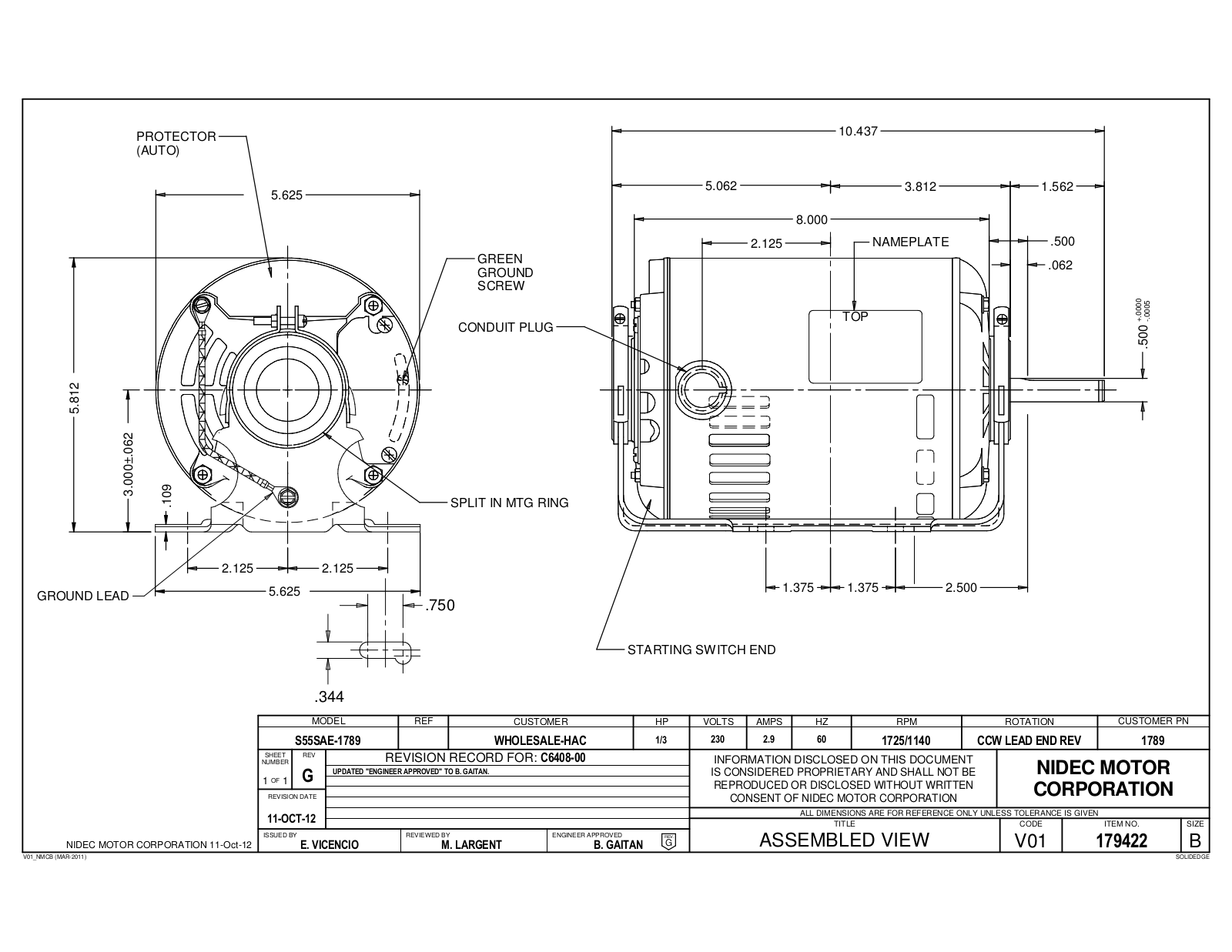

US Motors 1789 Dimensional Sheet

PROTECTOR (AUTO)

10.437

5.812

GROUND LEAD

5.625

5.062

3.812

1.562

8.000

.500

.062

GREEN GROUND

2.125

NAMEPLATE

SCREW

CONDUIT PLUG

TOP

+.0000

-.0005

.500

3.000±.062 .109

SPLIT IN MTG RING

2.125 2.125

5.625

2.5001.3751.375

.750

NIDEC MOTOR CORPORATION 11-Oct-12

SHEET

NUMBER

REVISION DATE

11-OCT-12

ISSUED BY

.344

MODEL REF

S55SAE-1789

REV

UPDATED "ENGINEER APPROVED" TO B. GAITAN.

E. VICENCIO

REVISION RECORD FOR:

CUSTOMER HP VOLTS AMPS HZ RPM ROTATION

WHOLESALE-HAC

C6408-00

REVIEWED BY ENGINEER APPROVED

M. LARGENT B. GAITAN

STARTING SWITCH END

1/3

230

INFORMATION DISCLOSED ON THIS DOCUMENT

IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSED WITHOUT WRITTEN

REV.

2.9

CONSENT OF NIDEC MOTOR CORPORATION

ASSEMBLED VIEW

1725/1140

CCW LEAD END REV 1789

NIDEC MOTOR

CORPORATION

ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN

TITLE CODE SIZEITEM NO.

V01

CUSTOMER PN

179422

SOLIDEDGEV01_NMCB (MAR-2011)
