Page 1
MODEL REF
K55BWTMY-9594
CUSTOMER
STANDARD
HP
VOLTS
1
115
AMPS
11.1
HZ
60
RPM
1625/3 SPD
ROTATION
CCW LEAD END REV
CAT. NO.
1699
K55 HUB, OPEN, S/A BRG.
DESCRIPTION / REMARKS
REVERSING LEADS
2 PUR, 2 ORG
AUTOMATIC
THERMAL
PROTECTOR
90°
+2.000
4.000
-0.000
90°
2 LEADS, #18, .031 THICK
INSUL WITH .250 Q.C.
STRAIGHT TERMS
(2) BROWN = 36.000±1.5
4 LEADS #18, .031 THICK INSUL, .250 FLAG
TERMINAL TO EXTEND BEYOND MOTOR:
RED=36.000±1.500, BLK=36.000±1.500
BLU=36.000±1.500, WHT=36.000±1.500
6.607( )
NAMEPLATE
REV.
A
2.250
TOP
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
13.152 ±.062
TOP
6.000 ±.047
8-32
THR'D
1.250 ±.062
5.250( )
.047
.500
REV.
NOTE:
A
- KIT - 2.250'' RING CONVERSION
SHIPPED IN CARTON
5.625(
O
5.125(
O
)
B.C.)
45° 45°
NIDEC MOTOR CORPORATION 04-May-20
NIDEC MOTOR CORPORATION 04-May-20
UPDATED DIMENSION TO 2.250 AND NOTE TO 2.250
ISSUED BY :
ISSUED BY :
E. GONZALEZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E36982
C. LUGO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

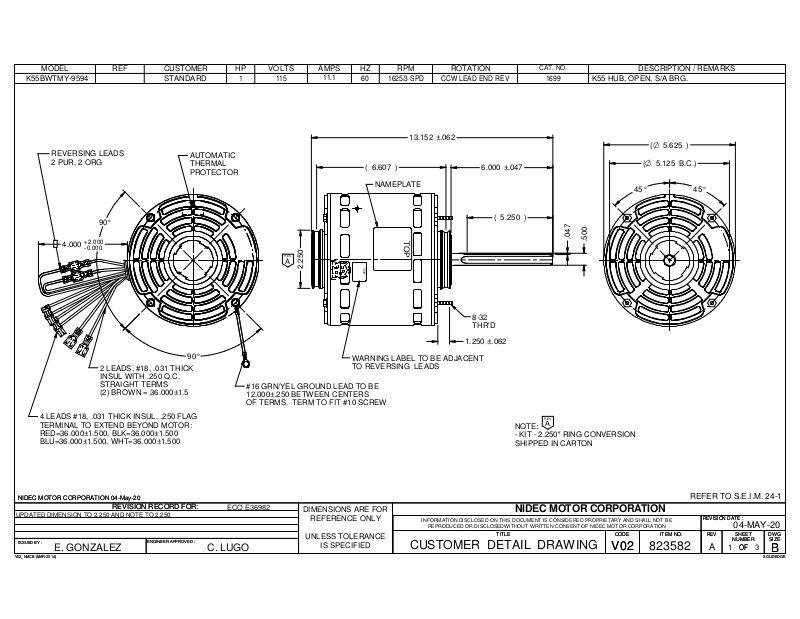

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823582
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
04-MAY-20
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
