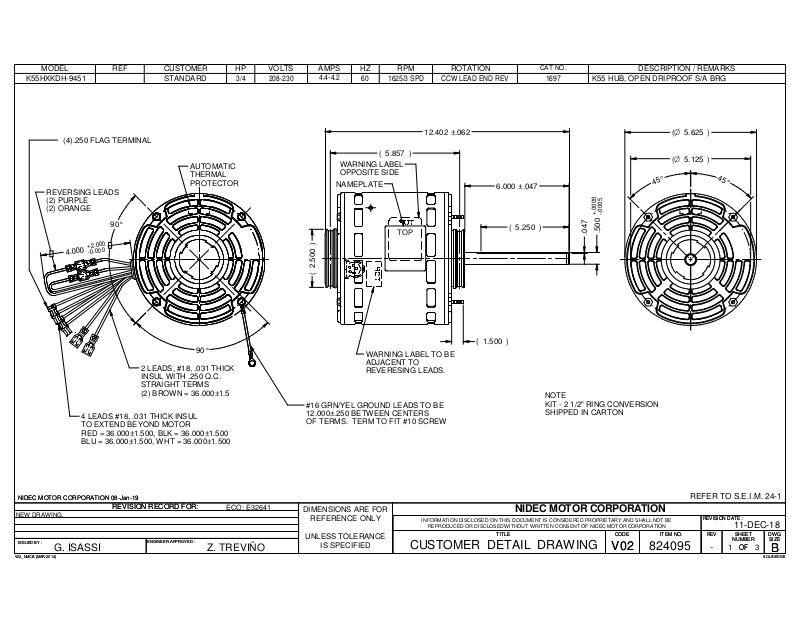

US Motors 1697 Dimensional Sheet

MODEL REF

K55HXKDH-9451

CUSTOMER
STANDARD

HP

3/4

VOLTS
208-230

AMPS

4.4-4.2

HZ

60

RPM

1625/3 SPD

ROTATION

CCW LEAD END REV

CAT NO.

1697

K55 HUB, OPEN DRIPROOF S/A BRG

DESCRIPTION / REMARKS

(4).250 FLAG TERMINAL

REVERSING LEADS
(2) PURPLE
(2) ORANGE

90°

0

0

0

.

2

+

0

0

0

0

0

.

0

0

.

-

4

4 LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR
RED = 36.000±1.500, BLK = 36.000±1.500
BLU = 36.000±1.500, WHT = 36.000±1.500

AUTOMATIC
THERMAL
PROTECTOR

90°

2 LEADS, #18, .031 THICK
INSUL WITH .250 Q.C.
STRAIGHT TERMS
(2) BROWN = 36.000±1.5

12.402 ±.062

5.857( )

WARNING LABEL
OPPOSITE SIDE

NAMEPLATE

TOP

2.500( )

WARNING LABEL TO BE
ADJACENT TO
REVERESING LEADS.

#16 GRN/YEL GROUND LEADS TO BE

12.000±.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW

6.000 ±.047

1.500( )

5.250( )
.047

NOTE
KIT - 2 1/2" RING CONVERSION
SHIPPED IN CARTON

5.625(

O

O

°

5

4

+.0000

-.0005

)

5.125(

)

4

5

°

.500

NIDEC MOTOR CORPORATION 08-Jan-19

NIDEC MOTOR CORPORATION 08-Jan-19

NEW DRAWING.

ISSUED BY :

ISSUED BY :

G. ISASSI

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

ECO: E32641

Z. TREVIÑO

DIMENSIONS ARE FOR

REFERENCE ONLY

UNLESS TOLERANCE

IS SPECIFIED

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

NIDEC MOTOR CORPORATION

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

CUSTOMER DETAIL DRAWING

TITLE

TITLE

CODE ITEM NO.

CODE ITEM NO.

V02

V02

824095

REFER TO S.E.I.M. 24-1

REVISION DATE :

REVISION DATE :

REV

REV

-

11-DEC-18

SHEET

SHEET

NUMBER

NUMBER

1 3

OF

OF

DWG

DWG

SIZE

SIZE

B

B

SOLIDEDGEV02_NMCB (MAR-2014)

SOLIDEDGEV02_NMCB (MAR-2014)
