Page 1
#16 GRN/YEL GROUND LEAD TO
G
BE 12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW.
(4) LEADS,#18,.031 THICK
INSUL. 2-YELLOW 2-ORANGE
FOR REVERSING ROTATION.
AUTOMATIC THERMAL
PROTECTOR
5.625
SPLIT IN
MTG. RING
6 LEADS,#18,.031 THICK INSUL.,
TO EXTEND BEYOND MOTOR.
WHITE=24.000±1 ,BLACK=24.000±1
BLUE=24.000±1 ,RED=24.000±1
BROWN=24.000±1 ,BRN/WHT=24.000±1
4 LEADS .750u.125
STRIPPED WHITE, BLACK,
BLUE & RED
REV.
G
(2).250 INSULATED STRAIGHT
Q.C. TERMS.
0
0
5
.
2
ON
BROWN AND
BRN/WHT LEADS.
REV.
NAMEPLATE
10.65
4.562
4.500
.75
TOP
T
O
P
TO REVERSE ROTATION
INTERCHANGE ORANGE
AND YELLOW LEADS.
5.12
WARNING LABEL TO BE ADJACENT
TO REVERSING LEADS.
MAIN 1 MAIN 2 MAIN 3
AUX
T
E
H
T
I
W
H
/
N
W
R
B
ORG
N
W
O
R
B
W
O
L
L
E
Y
E
G
N
A
R
O
W
O
L
L
E
Y
PROT
MALE
FEMALE
K
C
A
L
B
4.000
#8-32 UNC
THR'D
E
U
L
B
0
5
0
0
0
0
0
0
.
.
+
-
0
7
0
4
5
0
.
.
D
E
R
MODEL REF
K55HXTBY-8216
SHEET
NUMBER
OF
1
1
REVISION DATE
REV
UPDATED NOTE AND TERMINALS
G
REVISION RECORD FOR:
28-MAY-13
NIDEC MOTOR CORPORATION 28-May-13
ISSUED BY
A. SANCHEZ
REVIEWED BY ENGINEER APPROVED
M. LARGENT
CUSTOMER HP VOLTS AMPS HZ RPM ROTATION
STANDARD
C7703-00
1/3-1/4 208-230
B. GAITAN
2.1-1.4
60 1625/3SPD
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
CONSENT OF NIDEC MOTOR CORPORATION
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

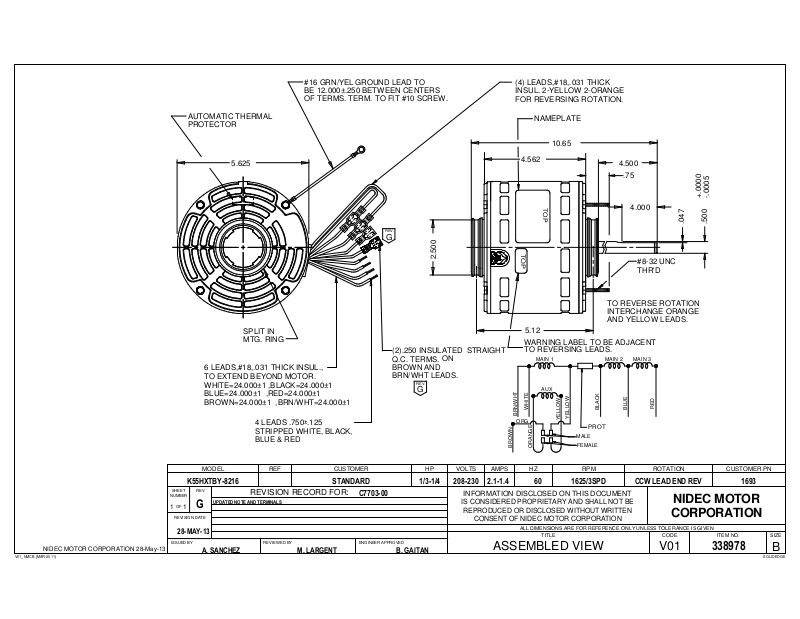

ASSEMBLED VIEW
CCW LEAD END REV 1693
NIDEC MOTOR
CORPORATION
V01
CUSTOMER PN
338978
B
SOLIDEDGEV01_NMCB (MAR-2011)
