Page 1
MODEL
K55HXKCY-9442
REF
STANDARD
HP ROTATION
1/3
VOLTS
AMPS
115 3.7 60
HZ
RPM
1625/3 SPD
C.CW LE REV
CAT. NO
1692
DESCRIPTION / REMARKSCUSTOMER
REVERSING LEADS
2 PURPLE
2 ORANGE
(4) .250 FLAG TERMINAL
4
.
0
0
0
°
0
+
9
2
.
0
-
.
0
0
0
4 LEADS #18, .031 THICK INSUL
TO EXTEND BEYOND MOTOR:
RED=36.000u1.500, BLK=36.000u1.500,
BLU=36.000u1.500, WHT=36.000u1.500
2 LEADS #18, .031 THICK INSUL
WITH .250 Q.C. STRAIGHT TERMS
(2) BROWN=36.000u1.500
90°
AUTOMATIC
THERMAL
PROTECTOR
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS
TOP
TOP
2.255
NAMEPLATE
#16 GRN/YEL GROUND LEADS TO BE
12.000u.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
11.400
1.500
WARNING LABEL
OPPOSITE SIDE
CONNECTION SHOWN IS
FOR C.CW LE ROTATION
TO REVERSE ROTATION,
INTERCHANGE ORANGE
AND PURPLE LEADS
6.545 ±.0474.310
6.000 ±.047
5.250
N
R
B
.500
.047
FEMALE
ORG
N
R
B
CAP 15MDF, 370V
45°
5.125 DIA. B.C.
M1
AUX.
G
R
O
)
C
(
T
H
W
5.625
PROT
R
U
P
MALE
R
U
P
45°
M2 M3
)
1
(
K
C
A
L
B
)
2
(
E
U
L
B
)
3
(
D
E
R
NIDEC MOTOR CORPORATION 04-Oct-18
NIDEC MOTOR CORPORATION 04-Oct-18
CREATED NEW DRAWING
ISSUED BY :
ISSUED BY :
F. GARCIA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32195
P. RODRIGUEZ
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

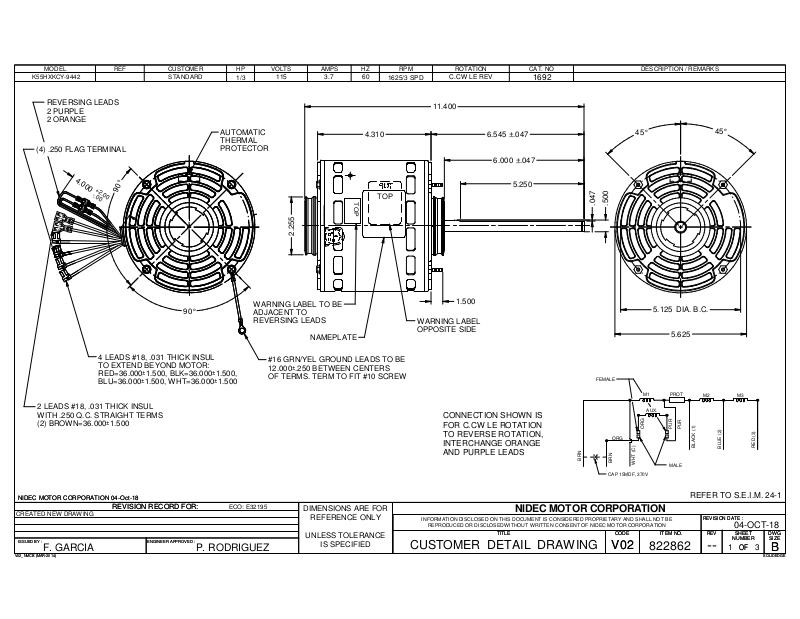

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
822862
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
04-OCT-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
