Page 1
MODEL REF
K55HXKCR-9438
CUSTOMER
STANDARD
HP
1/4
VOLTS
115
AMPS
2.7
HZ
60
RPM
1625/3 SPD
ROTATION
CCW LEAD END REV
CAT. NO.
1690
K48 HUB, OPEN DRIPROOF SLV BRG.
DESCRIPTION / REMARKS
2 LEADS, #18, .031THICK
INSUL WITH .250 Q.C. STRAIGHT TERMS.
(2) BROWN = 36.000±1.500.
4 REVERSING LEADS
2 PURPLE
2 ORGANGE
+2.000
4.000
-0.000
4 LEADS,#18,.031 THICK INSUL.
TO EXTEND BEYOND MOTOR
RED=36.000±1.500,BLK=36.000±1.500,
BLU=36.000±1.500,WHT=36.000±1.500,
(4) .250 FLAG TERMINALS
AUTOMATIC
THERMAL
PROTECTOR
4.607( )
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS.
2.255
WARNING LABEL
OPPOSITE SIDE
NAMEPLATE
#16 GRN/YEL GROUND LEAD TO BE
12.000±.250 BETWEEN CENTERS
OF TERMS. TERM. TO FIT #10 SCREW
TOP
11.150 ±.062
6.000 ±.047
1.500 REF.
5.250( )
+.0000
-.0005
.500
.047
KIT, RING CONVERSION 2 1/2"
SHIPPED IN CARTON
45°
5.625(
O
5.125(
O
3.625 TYP.
)
B.C.)
45°
NIDEC MOTOR CORPORATION 10-Dec-18
NIDEC MOTOR CORPORATION 10-Dec-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32641
Z. TREVIÑO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

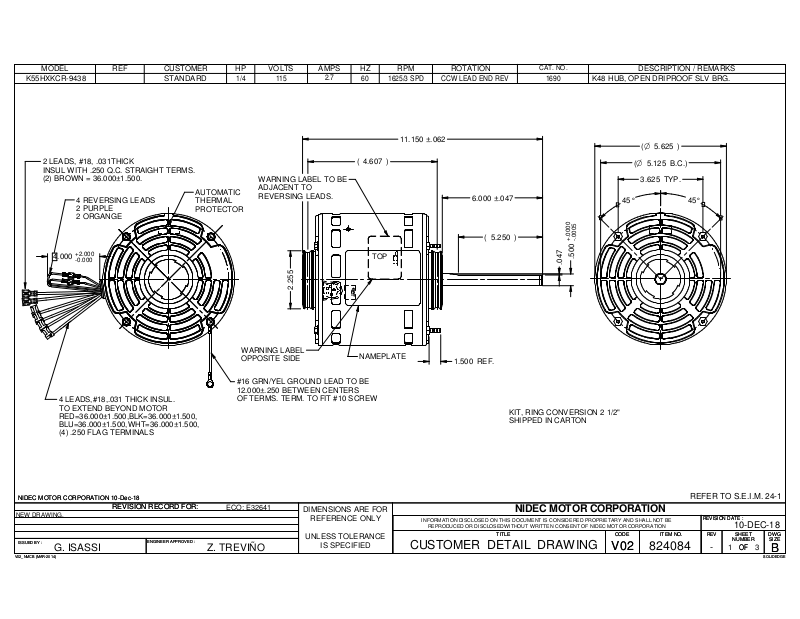

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
824084
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
10-DEC-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
