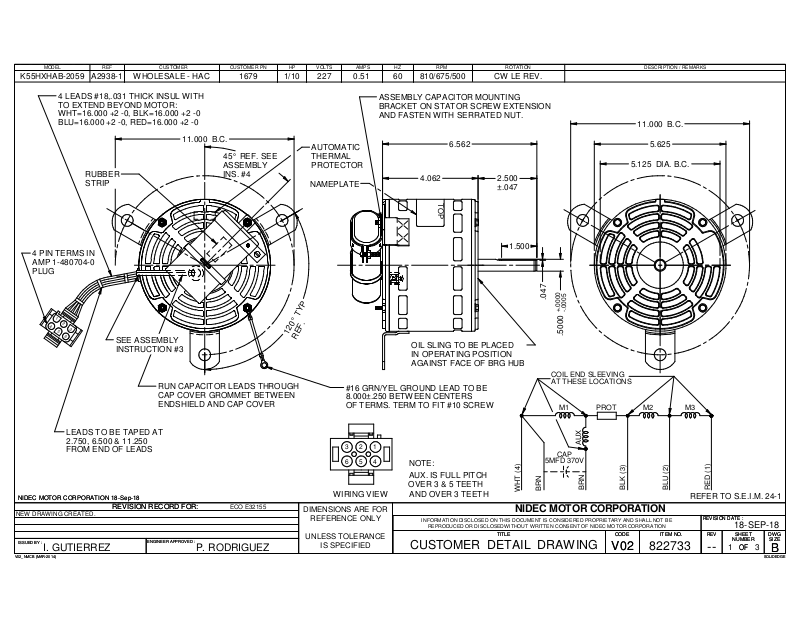

US Motors 1679 Dimensional Sheet
MODEL REF
K55HXHAB-2059
A2938-1
CUSTOMER
WHOLESALE - HAC
1679
HP VOLTS AMPS HZ RPM
1/10
227
0.51
810/675/500 CW LE REV.
60
ROTATIONCUSTOMER PN
DESCRIPTION / REMARKS
4 LEADS #18,.031 THICK INSUL WITH
TO EXTEND BEYOND MOTOR:
WHT=16.000 +2 -0, BLK=16.000 +2 -0
BLU=16.000 +2 -0, RED=16.000 +2 -0
RUBBER
STRIP
4 PIN TERMS IN
AMP 1-480704-0
PLUG
1
2
4
3
5
6
SEE ASSEMBLY
INSTRUCTION #3
11.000 B.C.
45° REF. SEE
ASSEMBLY
INS. #4
2
1
RUN CAPACITOR LEADS THROUGH
CAP COVER GROMMET BETWEEN
ENDSHIELD AND CAP COVER
AUTOMATIC
THERMAL
PROTECTOR
NAMEPLATE
P
Y
T
°
.
0
F
E
R
ASSEMBLY CAPACITOR MOUNTING
BRACKET ON STATOR SCREW EXTENSION
AND FASTEN WITH SERRATED NUT.
6.562
4.062
T
O
P
OIL SLING TO BE PLACED
IN OPERATING POSITION
AGAINST FACE OF BRG HUB
#16 GRN/YEL GROUND LEAD TO BE
8.000±.250 BETWEEN CENTERS
OF TERMS. TERM TO FIT #10 SCREW
2.500
±.047
1.500
.047
+.0000
-.0005
.5000
COIL END SLEEVING
AT THESE LOCATIONS
PROT M2M1
11.000 B.C.
5.625
5.125 DIA. B.C.
M3
LEADS TO BE TAPED AT
2.750, 6.500 & 11.250
FROM END OF LEADS
NIDEC MOTOR CORPORATION 18-Sep-18
NIDEC MOTOR CORPORATION 18-Sep-18
NEW DRAWING CREATED.
ISSUED BY :
ISSUED BY :
I. GUTIERREZ
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E32155
P. RODRIGUEZ
3 2 1
4
6 5
WIRING VIEW
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
AUX
CAP
NOTE:
5MFD 370V
AUX. IS FULL PITCH
OVER 3 & 5 TEETH
AND OVER 3 TEETH
BRN
WHT (4)
BRN
BLK (3)
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
BLU (2)
822733
RED (1)
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
--
18-SEP-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
