Page 1
MODEL REF
K48ZZTAW-3623
CUSTOMER
STANDARD
HP
1/16 1678
VOLTS
AMPS
0.5
HZ
60
RPM
850/3 SPD
ROTATION
CW LEAD END277
CUSTOMER PT. NO.
K48 S/A BRG. OPEN
DESCRIPTION / REMARKS
(4) PIN TYPE TERMINALS AMP PT.
#350218-1 WITH INSUL. GRIP
IN AMP 1-480704-0 PLUG.
SEE CRIT.
REQ. # 1
1
4
2
5
3
6
(1) #16, .031 THICK INSUL.
GREEN GROUND LEAD TO BE
8.000 LONG WITH TERMINALS
TO FIT #10 SCREW
6 LEADS, #18, .031 THICK INSUL.
TO EXTEND BEYOND MOTOR
(2) BRN=6.000 +2-0
BLU=16.000 +2-0, RED=16.000 +2-0,
BLK=16.000 +2-0, WHT=16.000 +2-0.
AUTOMATIC
THERMAL
PROTECTOR
3 HOLES
.312 DIA
SEAM WELD
123
56
4
WIRING VIEW
+.000
7.622
-.001
4.062( )
2.250 ±.047
NAMEPLATE
T
O
P
+.000
1.250
OPEN ENDSHIELD
(BOTH ENDS)
3.250
FACES OF 3 MTG. BRACKETS MUST BE IN A PLANE
PERPENDICULAR TO THE SHAFT CENTERLINE WITHIN
.060 T.I.R. WHEN MEASURED AT A 4.625 RADIUS
10.500( )
9.250( )
4.906( )
-.001
.500
1
2
0
°
NIDEC MOTOR CORPORATION 08-Nov-18
NIDEC MOTOR CORPORATION 08-Nov-18
NEW DRAWING.
ISSUED BY :
ISSUED BY :
G. ISASSI
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO: E32643
Z. TREVIÑO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

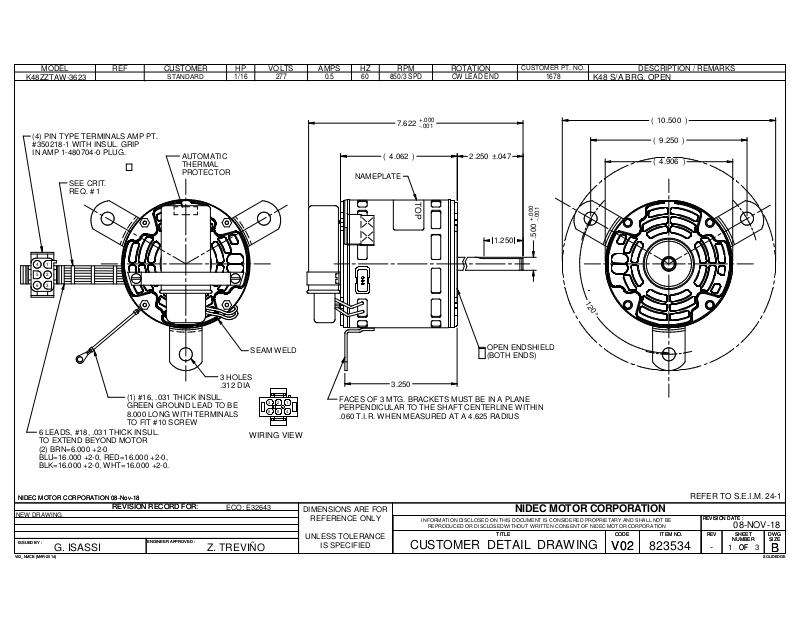

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823534
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
-
08-NOV-18
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
