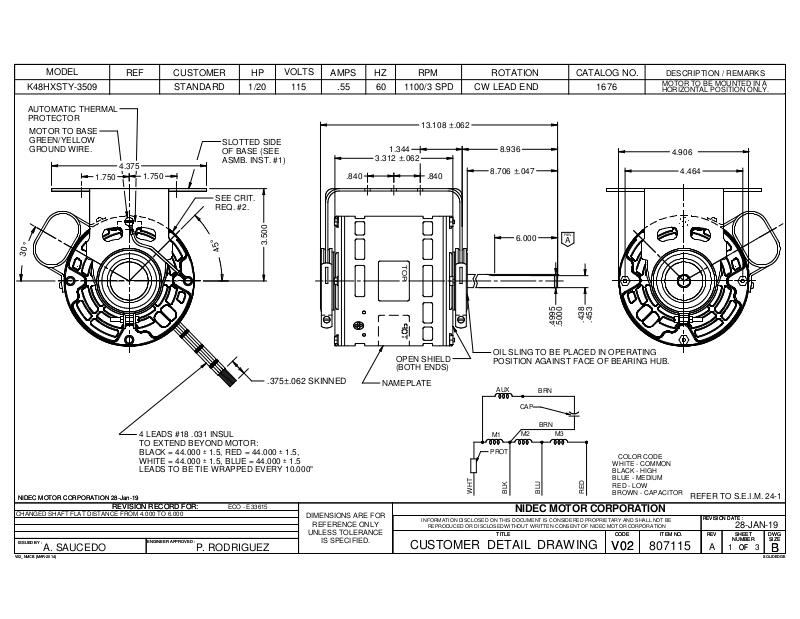

US Motors 1676 Dimensional Sheet
MODEL
K48HXSTY-3509
AUTOMATIC THERMAL
PROTECTOR
MOTOR TO BASE
GREEN/YELLOW
GROUND WIRE.
1.750
REF
4.375
1.750
CUSTOMER
STANDARD
SEE CRIT.
REQ. #2.
HP
SLOTTED SIDE
OF BASE (SEE
ASMB. INST. #1)
VOLTS
1151/20
AMPS
.55 1100/3 SPD
60
RPMHZ
13.108 ±.062
1.344
3.312 ±.062
.840
.840
ROTATION
CW LEAD END
8.936
8.706 ±.047
CATALOG NO.
1676
DESCRIPTION / REMARKS
MOTOR TO BE MOUNTED IN A
HORIZONTAL POSITION ONLY.
4.906
4.464
°
0
3
4 LEADS #18 .031 INSUL
TO EXTEND BEYOND MOTOR:
BLACK = 44.000 u 1.5, RED = 44.000 u 1.5,
WHITE = 44.000 u 1.5, BLUE = 44.000 u 1.5
LEADS TO BE TIE WRAPPED EVERY 10.000"
NIDEC MOTOR CORPORATION 28-Jan-19
NIDEC MOTOR CORPORATION 28-Jan-19
CHANGED SHAFT FLAT DISTANCE FROM 4.000 TO 6.000
ISSUED BY :
ISSUED BY :
A. SAUCEDO
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
°
5
4
ECO - E33615
P. RODRIGUEZ
3.500
.375±.062 SKINNED
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED.
6.000
T
O
P
OPEN SHIELD
(BOTH ENDS)
NAMEPLATE
OIL SLING TO BE PLACED IN OPERATING
POSITION AGAINST FACE OF BEARING HUB.
AUX
CAP
M2 M3
M1
PROT
T
H
W
K
L
B
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
TITLE
TITLE
CUSTOMER DETAIL DRAWING
BRN
BRN
U
L
B
REV.
A
.438
.4995
.453
.5000
COLOR CODE
WHITE - COMMON
BLACK - HIGH
BLUE - MEDIUM
D
RED - LOW
E
R
BROWN - CAPACITOR
CODE ITEM NO.
CODE ITEM NO.
V02
V02
807115
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
28-JAN-19
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
