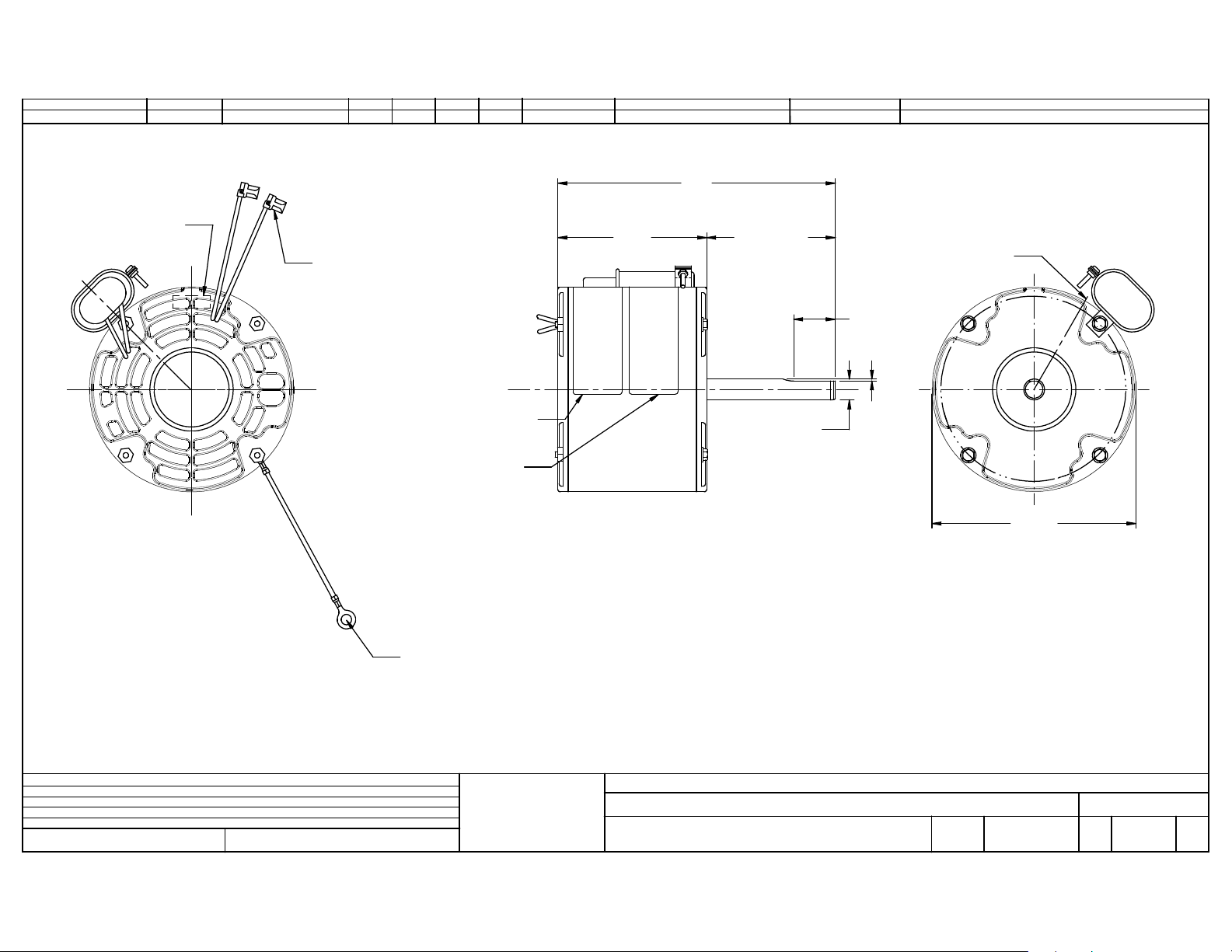

MODEL REF
HP
VOLTS
HZ
RPMAMPS DESCRIPTION / REMARKSCUSTOMER
ROTATION CAT. #
1675STANDARDK48HXTW-1675 .79 CCW LEAD END1550602301/8
K48, SELF-ALIGN BEARING
6.81
AUTOMATIC THERMAL
PROTECTOR
NOTE:
LEAD END OPEN ENDSHIELD
(2) LEADS #18, .031 THICK INSUL.
.250 FLAG TYPE Q.C. TERMS.
TO EXTEND BEYOND MOTOR:
BLACK= 32.000 +2-0
WHITE= 32.000 +2-0
WARNING LABEL
NAMEPLATE
#16 GREEN/YEL GROUND LEAD TO BE
6.000 u.250 BETWEEN CENTER OF TERMS.
TERMINAL TO FIT #10 SCREW
3.814
TOP
3.000 ±.046
SEAM WELD
TOP
1.000 MIN.
.500
O
.047
4.91
O
NIDEC MOTOR CORPORATION 27-Nov-18
NIDEC MOTOR CORPORATION 27-Nov-18
DRAWING WAS CREATED
ISSUED BY :
G. TREVIÑO
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E32044
J. RICE
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

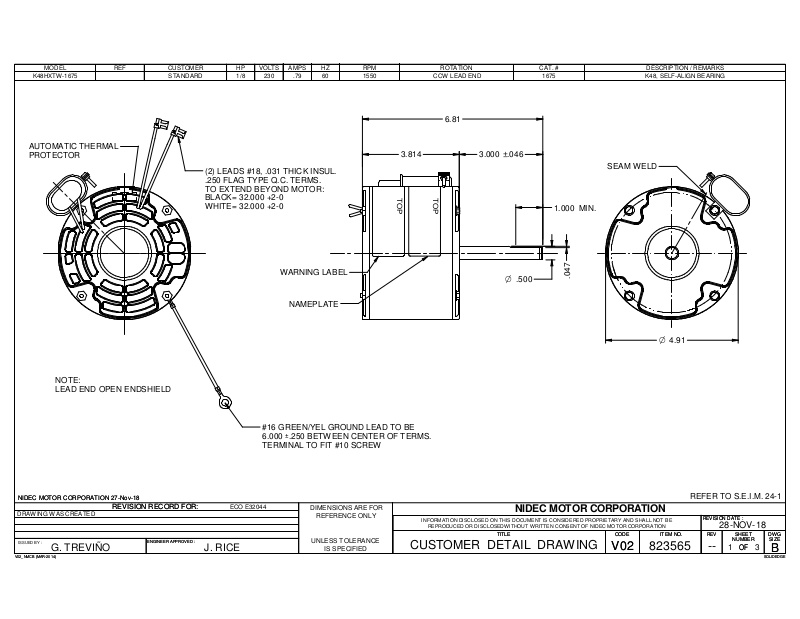

CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
823565
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
28-NOV-18
REV
REV
--
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
