#12 GREEN GROUND LEAD
TO BE 12" BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
NAMEPLATE
7.90
3
1
.
5
4
5
°
INCLUDES 4.0 MFD
370-VAC CAPACITOR
5.63
6.94
2.50
4.31
.38 CONNECTOR
6
1
.
2
°
5
4
.63 SKINNED
(2) LEADS TO
EXTEND 24"
BEYOND MOTOR
4.00
.44
.50
2.00
8-32 THR'D
0
7
0
4
5
0
.
.
NIDEC MOTOR CORPORATION 12-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSMD-1648 --
SHEET
NUMBER
1 1
REV
OF
C
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
12-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES
STANDARD
C6404-00
M. LARGENT B. GAITAN
1/5
REV.
C
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
2.0
CONSENT OF NIDEC MOTOR CORPORATION
60 1075
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.

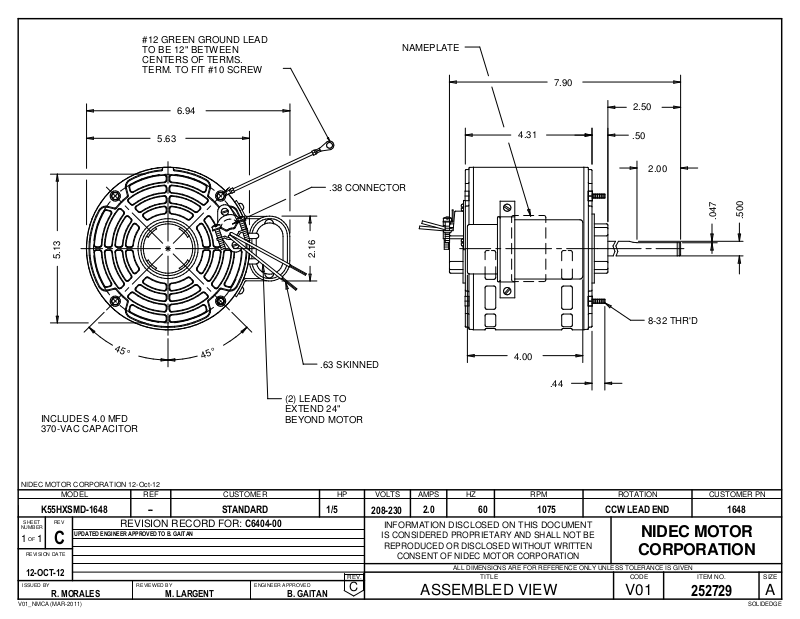

ASSEMBLED VIEW
CCW LEAD END 1648
NIDEC MOTOR
CORPORATION
V01
252729
A
SOLIDEDGEV01_NMCA (MAR-2011)
