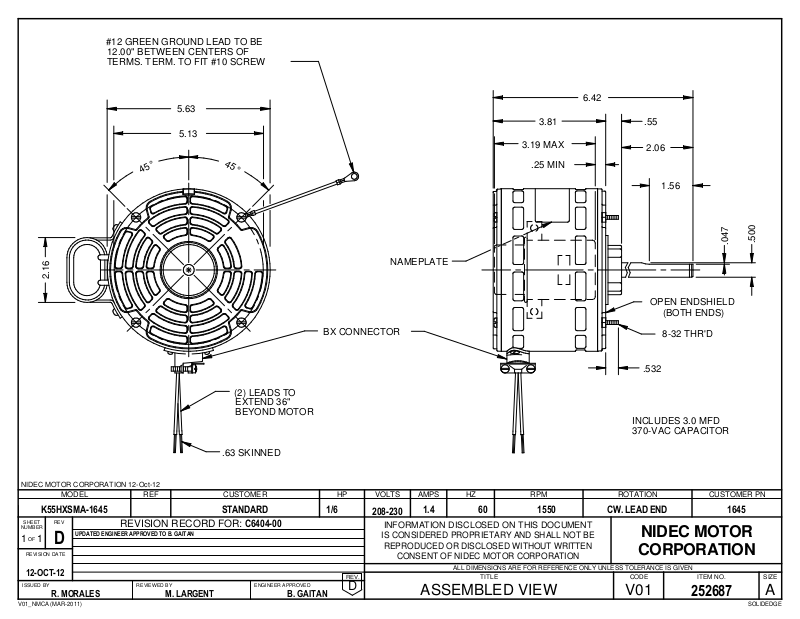

US Motors 1645 Dimensional Sheet
#12 GREEN GROUND LEAD TO BE
12.00" BETWEEN CENTERS OF
TERMS. TERM. TO FIT #10 SCREW
6.42
5.63
3.81
5.13
3.19 MAX
°
5
4
2.16
4
5
°
NAMEPLATE
.25 MIN
.55
2.06
1.56
OPEN ENDSHIELD
(BOTH ENDS)
.500
.047
NIDEC MOTOR CORPORATION 12-Oct-12
MODEL REF CUSTOMER HP VOLTS AMPS HZ RPM ROTATION CUSTOMER PN
K55HXSMA-1645
SHEET
NUMBER
1 1
REV
OF
D
REVISION DATE
UPDATED ENGINEER APPROVED TO B. GAITAN
REVISION RECORD FOR:
12-OCT-12
ISSUED BY
REVIEWED BY ENGINEER APPROVED
R. MORALES
(2) LEADS TO
EXTEND 36"
BEYOND MOTOR
.63 SKINNED
STANDARD
C6404-00
M. LARGENT B. GAITAN
BX CONNECTOR
1/6
208-230
INFORMATION DISCLOSED ON THIS DOCUMENT
IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSED WITHOUT WRITTEN
REV.
D
1.4
CONSENT OF NIDEC MOTOR CORPORATION
60 1550
ALL DIMENSIONS ARE FOR REFERENCE ONLY UNLESS TOLERANCE IS GIVEN
TITLE CODE SIZEITEM NO.
ASSEMBLED VIEW
8-32 THR'D
.532
INCLUDES 3.0 MFD
370-VAC CAPACITOR
CW. LEAD END 1645
NIDEC MOTOR
CORPORATION
V01
252687
A
SOLIDEDGEV01_NMCA (MAR-2011)
