US Motors 1413 Dimensional Sheet

MODEL

K55HXRHS-1974

REF

D40378

CUSTOMER

WHOLESALE

HAC

REVERSING LEADS;
(2) YEL & (2) ORG.

HP

1

460

AMPSVOLTS

3.12

60

6.062 ±.062

12.607

RPMHZ

ROTATION

CW LE REV1100

±.062

CUSTOMER PT. NO.

1413

2 FLAT 90º
APART

O

0.4995-

O

0.5000

DESCRIPTION / REMARKS

K55 HUB MTD, BALL BRG

5.625

6.545 u.047

5.125

.125

SEAM
WELD

#16 GRN/YEL GROUND
LEAD TO BE 12±.250
BETWEEN CENTERS
OF TERMINALS. TERM
TO FIT #10 SCREW

NIDEC MOTOR CORPORATION 13-Oct-16

NIDEC MOTOR CORPORATION 13-Oct-16

DELETED NOTE "BOLT HEADS THIS END".
ADDED GROMMET.

ISSUED BY :

ISSUED BY :

B. ANDRADE

REVISION RECORD FOR:

REVISION RECORD FOR:

ENGINEER APPROVED :

ENGINEER APPROVED :

4.00 u2.0

REV.

D

(4) LEADS #18 GA., .062 THICK INSUL
TO EXTEND BEYOND MOTOR
WHITE=27u1, BLACK=27u1
BROWN=27u1, BROWN/WHT=27u1

E26991

A. VILLANUEVA

T
O
P

(2) .250 FLAG
Q.C. TERMINALS

(2) .500
STRIPPED

TOLERANCES ON DIMENSIONS

(UNLESS OTHERWISE SPECIFIED)

INCHES

.XX = ± .010

.XXX = ±.005

ANGLES X°= ±1°

NAMEPLATE

mm

5.250

.469

.453

TOP

.469
.453

"BUNA N" RUBBER
THIS SIDE

WATER SLINGER

SPRING WASHER
THIS END

1.68 ±.062

REV.

D

1/2 M1

REVERSING WARNING LABEL
ADJACENT TO LEAD HOLE

COIL END SLEEVING
AT THESE 4 LOCATIONS

WHT

NIDEC MOTOR CORPORATION

INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE

REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

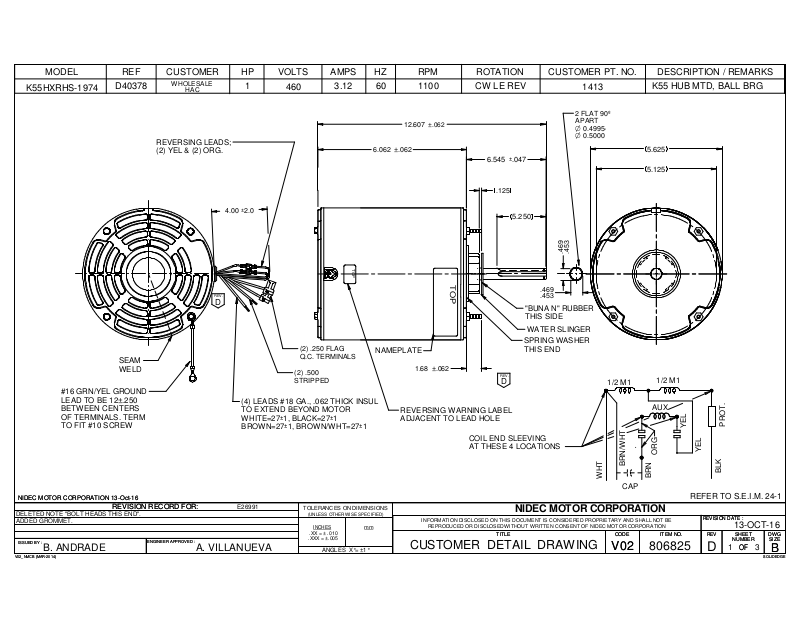

CUSTOMER DETAIL DRAWING
