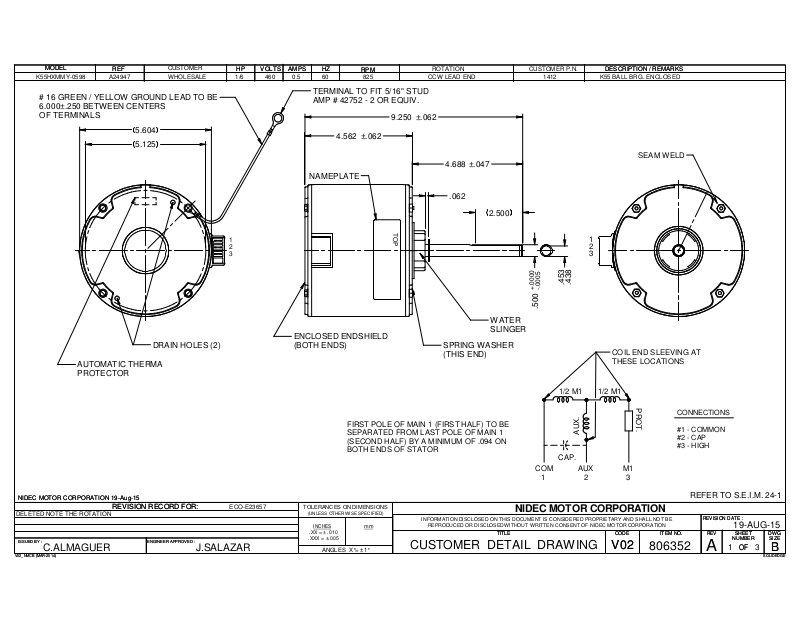

US Motors 1412 Dimensional Sheet
MODEL
MODEL
K55HXMMY-0598
REF
REF
A24947
CUSTOMER
WHOLESALE
# 16 GREEN / YELLOW GROUND LEAD TO BE
6.000±.250 BETWEEN CENTERS
OF TERMINALS
5.604
5.125
DRAIN HOLES (2)
AUTOMATIC THERMA
PROTECTOR
1/6
HP
HP
VOLTS
VOLTS
460
AMPS
AMPS
0.5
HZ
RPM
RPM
82560
ROTATION
CCW LEAD END
CUSTOMER P.N.
1412
DESCRIPTION / REMARKSHZ
DESCRIPTION / REMARKS
K55 BALL BRG. ENCLOSED
TERMINAL TO FIT 5/16" STUD
AMP # 42752 - 2 OR EQUIV.
9.250 ±.062
4.562 ±.062
SEAM WELD
4.688 ±.047
NAMEPLATE
.062
2.500
T
O
1
2
3
P
+.0000
-.0005
1
2
3
.453
.438
.500
WATER
ENCLOSED ENDSHIELD
(BOTH ENDS)
SPRING WASHER
(THIS END)
SLINGER
COIL END SLEEVING AT
THESE LOCATIONS
NIDEC MOTOR CORPORATION 19-Aug-15
NIDEC MOTOR CORPORATION 19-Aug-15
DELETED NOTE THE ROTATION
ISSUED BY :
ISSUED BY :
C.ALMAGUER
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO-E23657
J.SALAZAR
FIRST POLE OF MAIN 1 (FIRST HALF) TO BE
SEPARATED FROM LAST POLE OF MAIN 1
(SECOND HALF) BY A MINIMUM OF .094 ON
BOTH ENDS OF STAT OR
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
mm
1/2 M1
1/2 M1
PROT.
.
X
U
A
CAP.
COM
1
AUX
2
M1
3
NIDEC MOTOR CORPORATION
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
CONNECTIONS
#1 - COMMON
#2 - CAP
#3 - HIGH
806352
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
A
19-AUG-15
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
