Page 1
VAR
001
MODEL REF
K55HXRHN-1971 ----
CUSTOMER HP VOLTS AMPS HZ
WHOLESALE
1
460
2.5
60
RPM
1075/1 SPD
ROTATION
CCW LEAD END REV
CUSTOMER PN
1409
DESCRIPTION/REMARKS
BALL BEARING
(2) .250 FLAG TYPE
Q. C. TERMINALS WITH
INSULATION GRIP.
(2) .500 STRIPPED
DRAIN HOLE
WITH PLUGS
(BOTH ENDS)
SEE CRIT. REQ. 3
56°
GROMMET
#8-32 TYP.
AUTOMATIC THERMAL
PROTECTOR
SEAM
WELD
REV.
E
REV.
E
5.125 B.C. DIA.
5.625
GROMMET
SEE CRIT. REQ. #1.
(4) LEADS #18 THICK INSUL.
TO EXTEND BEYOND MOTOR.
WHITE=32.0u1.5, BLACK=32.0u1.5
BROWN=32.0u1.5, BRN/WHT=32.0u1.5
NIDEC MOTOR CORPORATION 28-Mar-18
NIDEC MOTOR CORPORATION 28-Mar-18
ADDED VIEW OF 2 WELDS PLATES, SEAM WELD AND DIMENSION 2.500 IN PAGES 1 AND 2.
ISSUED BY :
ISSUED BY :
O. CASTANEDA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
G. MEDINA
E30949
WARNING LABEL TO BE
ADJACENT TO
REVERSING LEADS
1.000 ±.062
NAMEPLATE
REV.
E
TOP
4
.
0
0
+
2
-
0
6.812
ENCLOSED ENSHIELD
(BOTH ENDS)
REVERSING LEADS
(2) YEL & (2) PUR.
TERMINAL TO FIT #10 SCREW.
#16 GRN/YEL GROUND LEAD TO BE
14.00u.250 BETWEEN CENTERS
OF TERMINALS.
TOLERANCES ON DIMENSIONS
(UNLESS OTHERWISE SPECIFIED)
INCHES
.XX = ± .010
.XXX = ±.005
ANGLES X°= ±1°
13.357
6.000 ±.047
.545
2.500
2 WELDS PLATES
180v u5v APART
.062 REF.
T
O
P
WATER
SLINGER
SPRING WASHER
(THIS END)
DRAIN PLUG
INSTRUCTION LABEL
FIRST POLE OF MAIN 1 (FIRST HALF)
TO BE SEPARATED FROM LAST POLE OF
MAIN 1 (SECOND HALF) BY A MINIMUM
OF .094 ON BOTH ENDS OD STATOR.
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
mm
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION

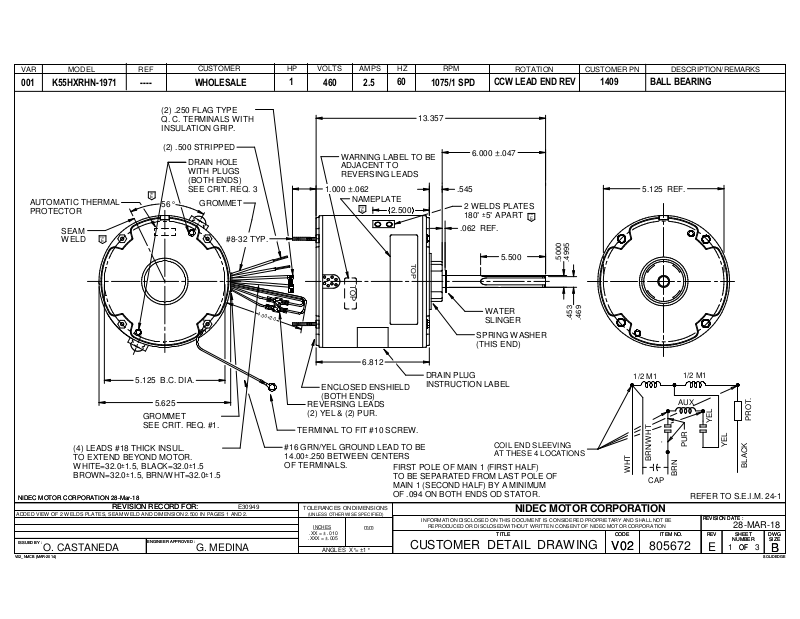

CUSTOMER DETAIL DRAWING
REV.
E
5.500
.5000
.4995
.453
.469
COIL END SLEEVING
AT THESE 4 LOCATIONS
NIDEC MOTOR CORPORATION
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
5.125 REF.
1/2 M1
BRN/WHT
WHT
CAP
805672
1/2 M1
AUX
YEL
PUR
BRN
YEL
BLACK
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
REV
REV
E
28-MAR-18
SHEET
SHEET
NUMBER
NUMBER
OF
OF
1 3
PROT.
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
