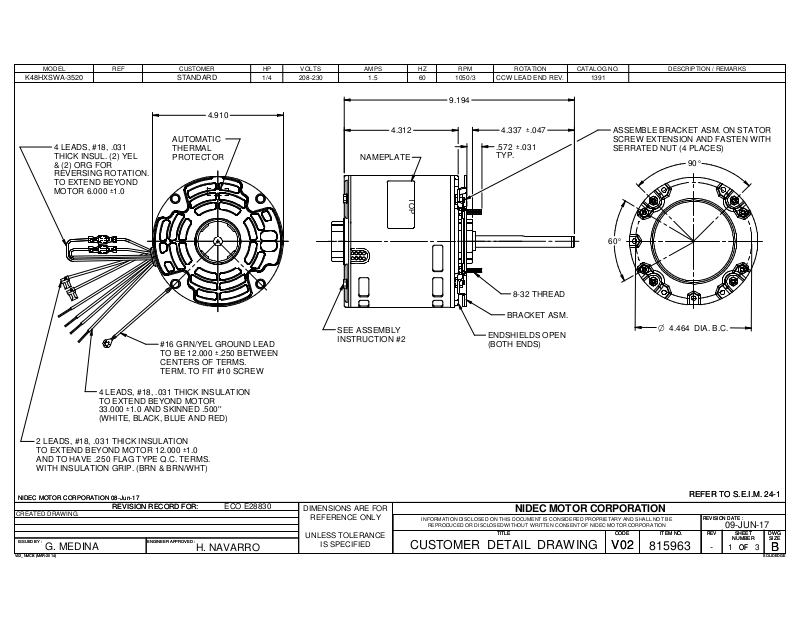

US Motors 1391 Dimensional Sheet
K48HXSWA-3520
4 LEADS, #18, .031
THICK INSUL. (2) YEL
& (2) ORG FOR
REVERSING ROTATION.
TO EXTEND BEYOND
MOTOR 6.000 u1.0
CUSTOMER HZ
STANDARD
HPMODEL CATALOG NO.
1/4 601.5 1050/3
VOLTSREF
208-230
AMPS DESCRIPTION / REMARKS
4.910
AUTOMATIC
THERMAL
PROTECTOR
NAMEPLATE
SEE ASSEMBLY
#16 GRN/YEL GROUND LEAD
INSTRUCTION #2
TO BE 12.000 u.250 BETWEEN
CENTERS OF TERMS.
TERM. TO FIT #10 SCREW
4.312
RPM
ROTATION
CCW LEAD END REV.
1391
9.194
4.337u.047
.572u.031
TYP.
T
O
P
ASSEMBLE BRACKET ASM. ON STATOR
SCREW EXTENSION AND FASTEN WITH
SERRATED NUT (4 PLACES)
90°
60°
8-32 THREAD
BRACKET ASM.
ENDSHIELDS OPEN
4.464ODIA. B.C.
(BOTH ENDS)
4 LEADS, #18, .031 THICK INSULATION
TO EXTEND BEYOND MOTOR
33.000 u1.0 AND SKINNED .500''
(WHITE, BLACK, BLUE AND RED)
2 LEADS, #18, .031 THICK INSULATION
TO EXTEND BEYOND MOTOR 12.000 u1.0
AND TO HAVE .250 FLAG TYPE Q.C. TERMS.
WITH INSULATION GRIP. (BRN & BRN/WHT)
NIDEC MOTOR CORPORATION 08-Jun-17
NIDEC MOTOR CORPORATION 08-Jun-17
CREATED DRAWING.
ISSUED BY :
ISSUED BY :
G. MEDINA
REVISION RECORD FOR:
REVISION RECORD FOR:
ENGINEER APPROVED :
ENGINEER APPROVED :
ECO E28830
H. NAVARRO
DIMENSIONS ARE FOR
REFERENCE ONLY
UNLESS TOLERANCE
IS SPECIFIED
INFORMATION DISCLOSED ON THIS DOCUMENT IS CONSIDERED PROPRIETARY AND SHALL NOT BE
NIDEC MOTOR CORPORATION
REPRODUCED OR DISCLOSEDWITHOUT WRITTEN CONSENT OF NIDEC MOTOR CORPORATION
CUSTOMER DETAIL DRAWING
TITLE
TITLE
CODE ITEM NO.
CODE ITEM NO.
V02
V02
815963
REFER TO S.E.I.M. 24-1
REFER TO S.E.I.M. 24-1
REVISION DATE :
REVISION DATE :
09-JUN-17
REV
REV
-
SHEET
SHEET
NUMBER
NUMBER
1 3
OF
OF
DWG
DWG
SIZE
SIZE
B
B
SOLIDEDGEV02_NMCB (MAR-2014)
SOLIDEDGEV02_NMCB (MAR-2014)
